GL7000 Data Platform



MODULES



Recording Capacity by Module  >> learn more

Note: the maximum recording capacity by modules and by recording media for 1 unit and 10 unit configuration.

Maximum Sampling Speed by Module  >> learn more

Note: the maximum sampling speed per module based on the storage options for RAM, internal flash memory, SD Card (SDHC), and SSD module (128GB).

Recording Capacity for Multiple Unit Configuration  >> learn more

Note: the maximum recording capacity for multi-unit module configuration.

Target Applications by Industry  >> learn more

Note: the sample application used by different industries including testing criteria and sample usage.

MODULES - MAX. SAMPLING SPEED

Module

Channels

in module

Max.

sampling

speed

Storage

device

 Available maximum sampling speed (interval)

Attached to

1 or 2
modules

Attached to

3 or 4
modules

Attached to

5 to 10
modules

Voltage module
GL7-V		 10ch 1kS/s
(1ms)		 Built-in RAM 1kS/s (1ms)

Built-in Flash

SD card

SSD (*2)

Voltage / Temp. Module
GL7-M 		10ch 100S/s
(10ms)		 Built-in RAM 100S/s (10ms)

Built-in Flash

SD card

SSD (*2)

Hi-speed Voltage module
GL7-HSV 		4ch 1MS/s
(1μs)		 Built-in RAM 1MS/s (1μs)

Built-in Flash

 1kS/s (1ms)

SD card

SSD (*2)

 1MS/s (1μs) 500kS/s (2μs) 200kS/s (5μs)

High Voltage module
GL7-HV 		2ch 1MS/s
(1μs)		 Built-in RAM 1MS/s (1μs)

Built-in Flash

 1kS/s (1ms)

SD card

SSD (*2)

 1MS/s (1μs) 500kS/s (2μs) 200kS/s (5μs)

DC Strain module
GL7-DCB 		4ch 100kS/s
(10μs)		 Built-in RAM 100kS/s (10μs) (*1)

Built-in Flash

 1kS/s (1ms)(*1)

SD card

SSD (*2)

 100kS/s (10μs)(*1)

Charge module
GL7-CHA 		4ch 100kS/s
(10μs)		 Built-in RAM 100kS/s (10μs)

Built-in Flash

 1kS/s (1ms)

SD card

SSD (*2)

 100kS/s (10μs)

Logic / Pulse module
GL7-L/P		 16ch

In Logic mode
1MS/s
(1μs)

Built-in RAM

1MS/s (1μs)(*1)

Built-in Flash

 1kS/s (1ms)(*1)

SD card

SSD (*2)

 1MS/s (1μs) 500kS/s (2μs) 200kS/s (5μs)(*1)

In Pulse mode

10kS/s
(100μs)

Built-in RAM 10kS/S (100μs) Not available(*1)

Built-in Flash

 1kS/s (1ms)

SD card

SSD (*2)

 1kS/S (100μs)

Voltage Output module
GL7-DCO 		8ch

Max. sampling speed for output 100kS/s


(10μs)

There is no settings of sampling for capturing data in the GL7-DCO.

(Data can be captured using other input module even while GL7-DCO module in real time with the outputs from the GL7-DCO module.)

*1. The number of modules that can be attached is limited by the type of module. (GL7-L/P: up to 7 units using Logic mode, up to 2 units using Pulse mode. GL7-DCB: up to 8 units.)

*2. The SSD module is optional. When the GL7-HSV and GL7-L/P is used simultaneously, number of channel in Pulse mode is limited.

*3. The data captured by the GL7-V, GL7-M, GL7-HSV, GL7-HV, GL7-DCB or GL7-CHA can be replayed on the GL7-DCO module. (The measured data of temperature and humidity can not be replayed. It is able to create and output the simple waveform that are the DC voltage and sine, triangle, ramp, or pulse wave.

MODULES - DATA CAPTURING TIME

Module

Storage

device

Capturing time (Attached 1 module *Attached 10 modules)
1MS/s
(1μs)		 500kS/s
(2μs)

200kS/s
(5μs)

100kS/s
(10μs)

1kS/s
(1ms)

 100S/s
(10ms)		 1S/s
(1s)


Voltage module
GL7-V

RAM, 2M samples

N/A

N/A

N/A

N/A

App. 33min.
App. 33min.

App. 5hrs.
App. 5hrs.

App. 23days
App. 23days

Built-in Flash, 2GB

 App. 21hrs.
App. 2hrs.		 App. 8days
App. 24hrs.		 App. 893days
App. 103days

SD card (max.

 32GB)(*1), 32GB

 App. 22hrs.
App. 2hrs.		 App. 9days
App. 26hrs.		 App. 956days
App. 110days

SSD (*1), 64GB


Voltage / Temp. module
GL7-M

RAM, 2M samples

N/A

N/A

N/A

N/A

 N/A App. 5hrs.
App. 5hrs.		 App. 23days
App. 23days

Built-in Flash, 2GB

 App. 8days
App. 24hrs.		 App. 893days
App. 103days

SD card (max.

 32GB)(*1), 32GB

 App. 9days
App. 26hrs.		 App. 956days
App. 110days

SSD (*1), 64GB


Hi-speed Voltage module
GL7-HSV

RAM, 2M samples

 2sec.
2sec.		 4sec.
4sec.		 10sec.
10sec.		 20sec.
20sec.		 App. 33min.
App. 33min.		 App. 5hrs.
App. 5hrs.		 App. 23days
App. 23days

Built-in Flash, 2GB

 N/A N/A N/A N/A App. 55hrs.
App. 8hrs.		 App. 23days
App. 3days		 App. 2323days
App. 363days

SD card (max.

 32GB)(*1), 32GB

 App. 59hrs.
App. 9hrs.		 App. 24days
App. 3days		 App. 2485days
App. 388days

SSD (*1), 64GB

 134sec.
N/A		 268sec.
N/A		 671sec.
95sec.		 App. 22min.
App. 3min.


High Voltage module
GL7-HV

RAM, 2M samples

 2sec.
2sec.		 4sec.
4sec.		 10sec.
10sec.		 20sec.
20sec.		 App. 33min.
App. 33min.		 App. 5hrs.
App. 5hrs.		 App. 23days
App. 23days

Built-in Flash, 2GB

 N/A N/A N/A N/A App. 39hrs.
App. 6hrs.		 App. 16days
App. 2days		 App. 1659days
App. 276days

SD card (max.

 32GB)(*1), 32GB

 App. 42hrs.
App. 7hrs.		 App. 17days
App. 2days		 App. 1775days
App. 295days

SSD (*1), 64GB

 134sec.
N/A		 268sec.
N/A		 671sec.
167sec.		 App. 22min.
App. 5min.


DC Strain module
GL7-DCB

RAM, 2M samples

N/A

N/A

N/A

 20sec.
20sec.		 App. 33min.
App. 33min.		 App. 5hrs.
App. 5hrs.		 App. 23days
App. 23days

Built-in Flash, 2GB

 N/A App. 39hrs.
App. 6hrs.		 App. 16days
App. 2days		 App. 1659days
App. 276days

SD card (max.

 32GB)(*1), 32GB

 App. 42hrs.
App. 7hrs.		 App. 17days
App. 2days		 App. 1775days
App. 295days

SSD (*1), 64GB

 App. 22min.
App. 3min.


Charge module
GL7-CHA

RAM, 2M samples

N/A

N/A

N/A

 20sec.
20sec.		 App. 33min.
App. 33min.		 App. 5hrs.
App. 5hrs.		 App. 23days
App. 23days

Built-in Flash, 2GB

 N/A App. 39hrs.
App. 6hrs.		 App. 16days
App. 2days		 App. 1659days
App. 276days

SD card (max.

 32GB)(*1), 32GB

 App. 42hrs.
App. 7hrs.		 App. 17days
App. 2days		 App. 1775days
App. 295days

SSD (*1), 64GB

 App. 22min.
App. 3min.


Logic / Pulse module
GL7-L/P

 Using
Logic
mode

RAM, 2M samples

 2sec. 4sec. 10sec. 20sec. App. 33min. App. 5hrs. App. 23days

Built-in Flash, 2GB

 N/A N/A N/A N/A App. 69hrs. App. 29days App. 2904days

SD card (max.

 32GB)(*1), 32GB

 App. 74hrs. App. 31days App. 3106days
SSD (*1), 64GB 134sec. 268sec. 671sec. App. 22min.
Using
Pulse
mode

RAM, 2M samples

N/A

N/A

N/A

N/A

 App. 33min. App. 5hrs. App. 23days

Built-in Flash, 2GB

 App. 7hrs. App. 79hrs. App. 331days

SD card (max.

 32GB)(*1), 32GB

 App. 8hrs. App. 85hrs. App. 355days
SSD (*1), 64GB


Voltage Output module
GL7-DCO

There is no data capturing time in the GL7-DCO because it is the analog voltage output module.

The output time is calculated by the following formula.

Selected sampling interval of output data x Number of data (up to 2 million points)

 It is able to be repeated output of data.

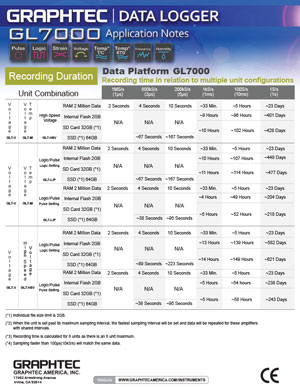

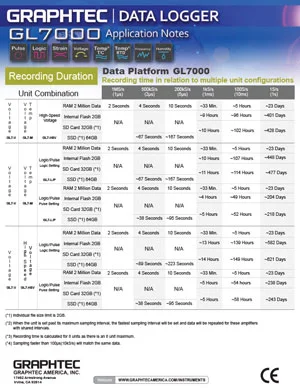

SAMPLE DATA CAPTURE TIME WITH COMBINED MODULE SOLUTIONS

Combination of modules

Storage

device

Capturing time (Attached 1 module *Attached 10 modules)
1MS/s
(1μs)		 500kS/s
(2μs)

200kS/s
(5μs)

1kS/s
(1ms)

100S/s
(10ms)

 1S/s
(1s)

Volt.

GL7-V

Volt./

Temp.

GL7-M

Hi-speed

Volt.

GL7-HSV

RAM, 2M samples

2sec.

4sec.

10sec.

App. 33min.

App. 5hrs.

App.23days

Built-in Flash, 2GB

 N/A N/A N/A App. 9hrs. App. 96hrs. App. 401days

SD card (max.

 32GB)(*1), 32GB

 App. 10hrs. App. 102hrs. App. 428days

SSD (*1), 64GB

 67sec. 167sec.

Volt.

GL7-V

Volt./

Temp.

GL7-M

Logic/Pulse

GL7-L/P

In Logic mode

RAM, 2M samples

2sec.

4sec.

10sec.

App. 33min.

App. 5hrs.

App.23days
Built-in Flash, 2GB N/A N/A N/A App. 10hrs. App. 107hrs. App.448days

SD card (max.

 32GB)(*1), 32GB

 App. 11hrs. App. 114hrs. App.477days

SSD (*1), 64GB

 67sec. 167sec.

Logic/Pulse

GL7-L/P

In Pulse mode

RAM, 2M samples

2sec.

4sec.

10sec.

 App. 33min. App. 5hrs. App.23days
Built-in Flash, 2GB N/A N/A N/A App. 4hrs. App. 49hrs. App.204days

SD card (max.

 32GB)(*1), 32GB

 App. 5hrs. App. 52hrs. App.218days

SSD (*1), 64GB

 App. 38sec. App. 95sec.

Volt.

GL7-V

Hi-speed

Volt.

GL7-HSV

Logic/Pulse

GL7-L/P

In Logic mode

RAM, 2M samples

 2sec.

4sec.

10sec.

 App. 33min. App. 5hrs. App.23days
Built-in Flash, 2GB N/A N/A N/A App. 10hrs. App. 107hrs. App.448days

SD card (max.

 32GB)(*1), 32GB

 App. 11hrs. App. 114hrs. App.477days

SSD (*1), 64GB

 67sec. 167sec.

Logic/Pulse

GL7-L/P

In Pulse mode

RAM, 2M samples

2sec.

4sec.

10sec.

 App. 33min. App. 5hrs. App.23days
Built-in Flash, 2GB N/A N/A N/A App. 5hrs. App. 54hrs. App.238days

SD card (max.

 32GB)(*1), 32GB

 App. 5hrs. App. 58hrs. App.243days

SSD (*1), 64GB

 38sec. 95sec.

Volt./

Temp.

GL7-M

Hi-speed

Volt.

GL7-HSV

Logic/Pulse

GL7-L/P

In Logic mode

RAM, 2M samples

 2sec.

4sec.

10sec.

 App. 33min. App. 5hrs. App.23days
Built-in Flash, 2GB N/A N/A N/A App. 13hrs. App. 139hrs. App.582days

SD card (max.

 32GB)(*1), 32GB

 App. 14hrs. App. 149hrs. App.621days

SSD (*1), 64GB

 89sec. 223sec.

Logic/Pulse

GL7-L/P

In Pulse mode

RAM, 2M samples

 2sec.

4sec.

10sec.

 App. 33min. App. 5hrs. App.23days
Built-in Flash, 2GB N/A N/A N/A App. 5hrs. App. 54hrs. App.238days

SD card (max.

 32GB)(*1), 32GB

 App. 5hrs. App. 58hrs. App.243days

SSD (*1), 64GB

 38sec. 95sec.

*1. The file for capturing data is limited to 2GB.

*2. The SSD module is optional. When GL7-HSV and GL7-L/P are used simultaneously, number of channel in Pulse mode is limited.

*3. The data captured by the GL7-V, GL7-M, GL7-HSV, GL7-HV, GL7-DCB or GL7-CHA can be replayed on the GL7-DCO module. (The measured data of temperature and humidity can not be replayed. It is able to create and output the simple waveform that are the DC voltage and sine, triangle, ramp, or pulse wave.

*4. When selected sampling speed is faster than 10kS/s (100μs interval), same data will be used at each sampling until data is updated by sampling.
