FC9000 Take-UP SYSTEM

BOOST YOUR PRODUCTION EFFICIENCY!

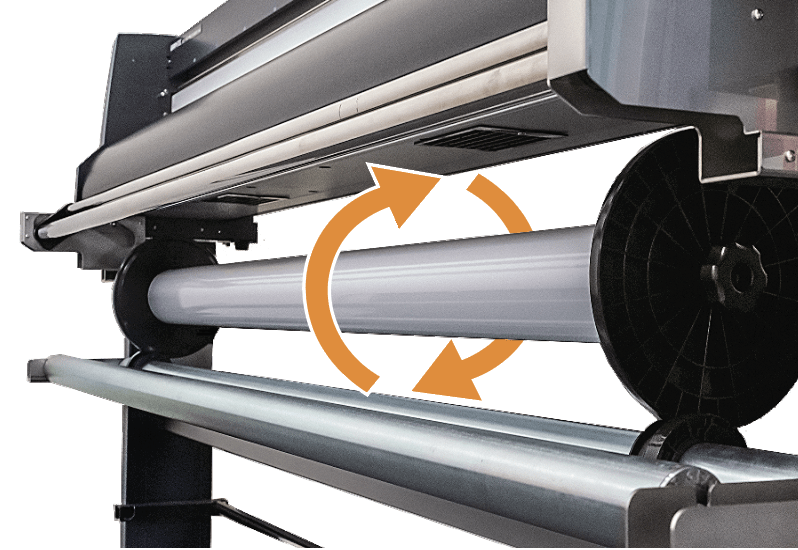

Available for the Graphtec FC9000-140 and FC9000-160 Models, the optional auto take-up reel system for the FC9000 cutter boosts production efficiency by automatically winding rolls of media using the equipped infrared sensor.

The DataLink Bar Code feature works with the take-up system to allow precision tracking of multiple jobs per roll up to 65 ft of media. Media may be automatically wound in either direction to significantly improve cutting efficiency.

Screen Shot 2020-07-10 at 11.11.47 AM.png

TAKE-UP SYSTEM FEATURES

ā€¢ Available for FC9000-140 & FC9000-160

ā€¢ Auto-Winds Forward and Back

ā€¢ Infrared Sensor to Detect Media

ā€¢ Allows Long-run Jobs for better Productivity

ā€¢ Increases Capacity for Cutting Large Jobs

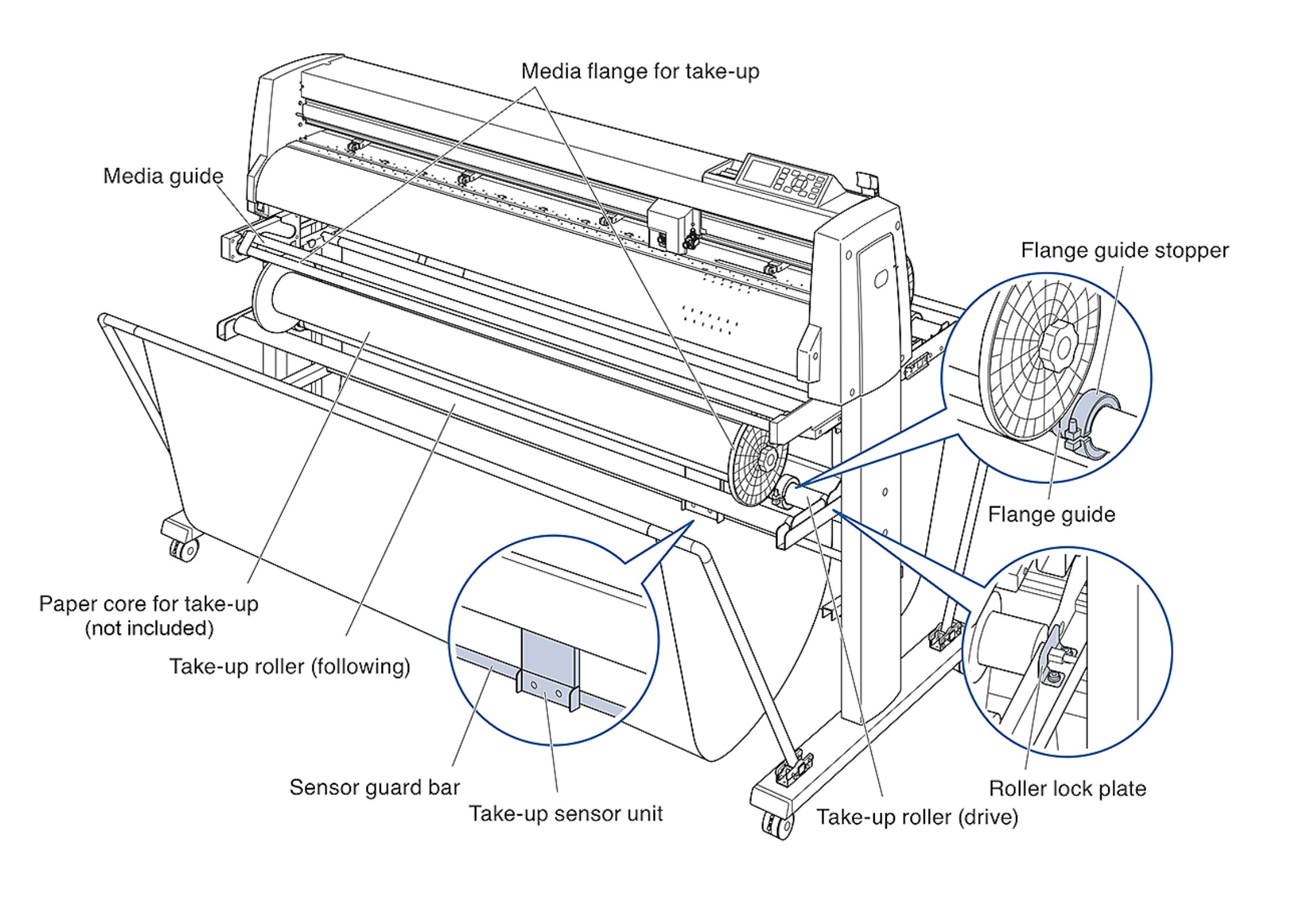

TAKE-UP SYSTEM DIAGRAM

TakeUp Diagram.png

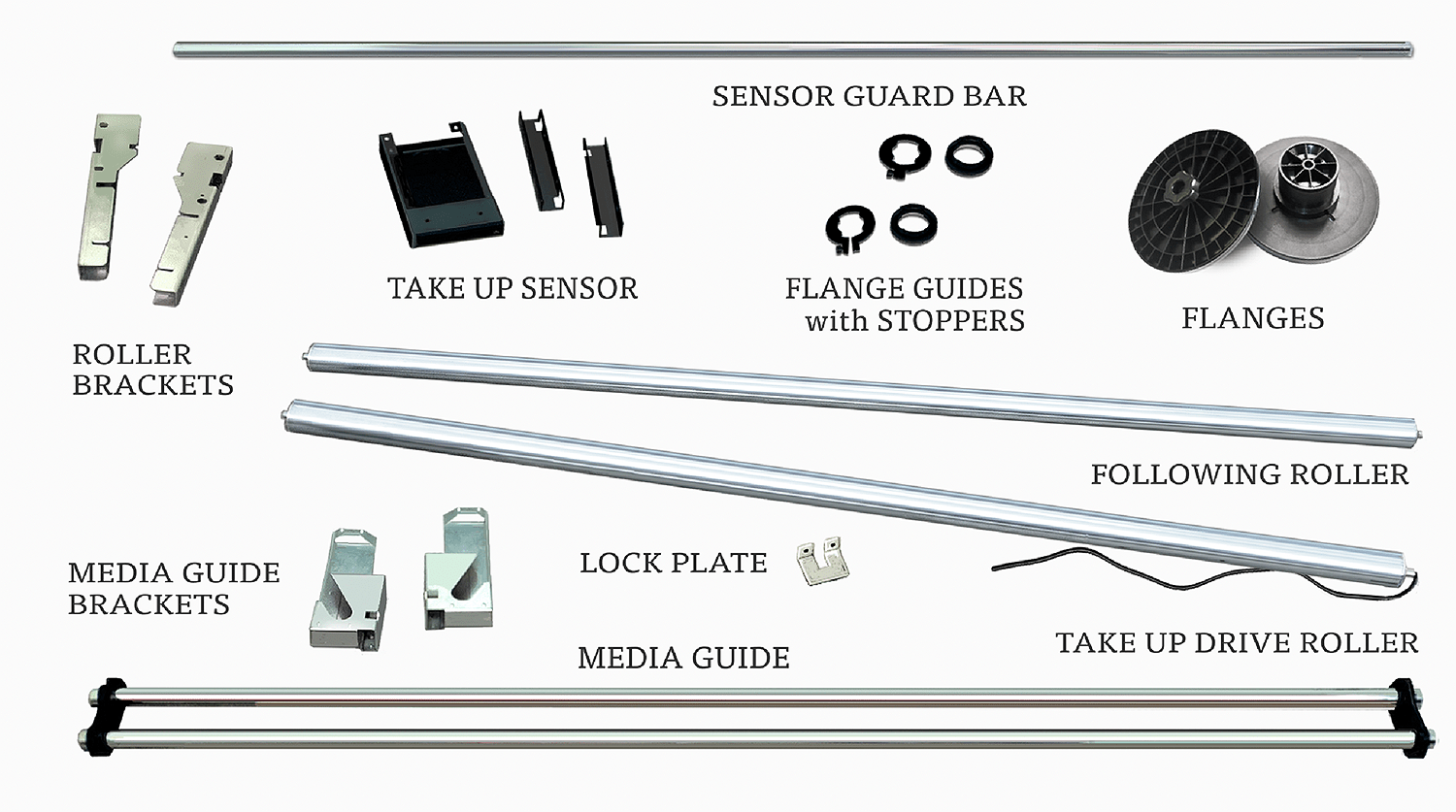

PARTS INCLUDED IN THE TAKE-UP SYSTEM

Item Qty Description
Take-up Roller Drive 1 Media that has finished plotting is taken up while rotating.
Following Drive 1 Supports take-up drive roller and flanges to hold and stabilize media
Media Guide 2 Supports media feeding
Flange Guide 2 Guides the media flange for take-up
Flange Guide Stopper 2 Secures the flange guide.
Infrared Sensor 1 Detects the presence of media to be taken up
Sensor Guard Bar 1 Protects the basket from touching the take-up sensor unit
Roller Lock Plate 1 Plate for fixing the take-up drive roller

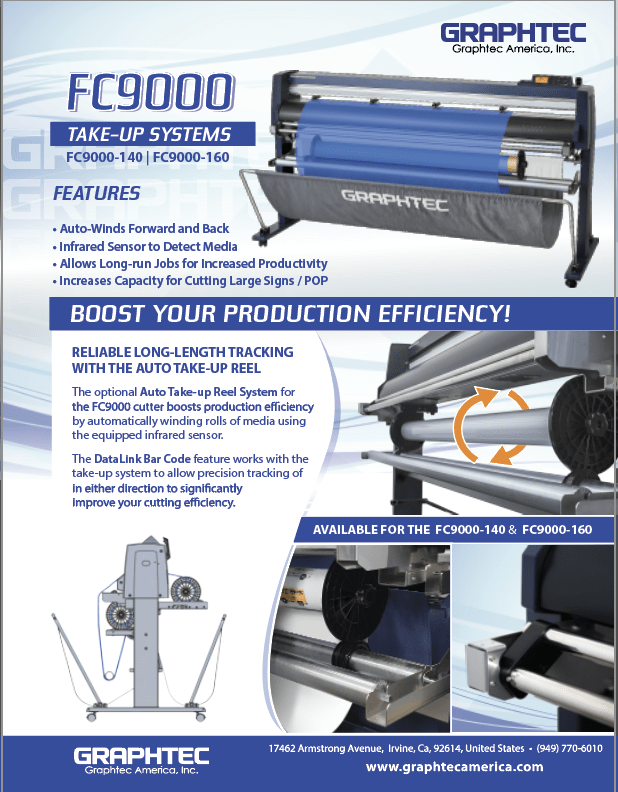

BROCHURE
