EQUIPPED W/ETHERNET (LAN) & USB INTERFACE TO COMMUNICATION WITH PC

Graphtec midi Loggger GL980 Feature Ethernet LAN and USB Communicate with PC.jpg


CONVENIENT FUNCTION WITH LAN (ETHERNET INTERFACE) CAPABILITY

When GL980 is connected to LAN using the Ethernet interface, networked computer can monitor real-time measured value, transfer files, and change set ups without using application software (GL980_2000-APS software).

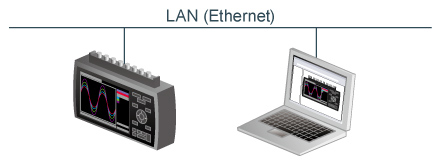

WEB SERVER FUNCTION

GL980 can be controlled externally via a network on the WEB browser, which also supports real-time monitoring and ability to use the menu buttons.

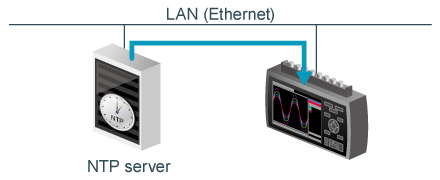

NTP CLIENT FUNCTION

The clock on the GL980 is periodically synchronized with the NTP server.

Graphtec midi Loggger GL980 Feature NTP Client Function.jpg

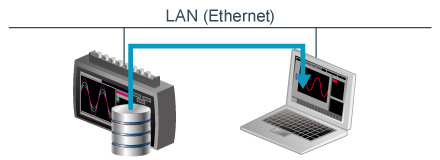

FTP SERVER FUNCTION

File in available storage device on GL980 except built-in RAM can be transferred or deleted from the PC.



EMAIL SENDING FUNCTION

Send information when alarm triggers, or when battery is low, or when communication speed drops, or to notify when the space becomes limited on the storage device by an e-mail to specified address. Information can also be sent periodically by settings.

Graphtec midi Loggger GL980 Feature Email Sending Function.jpg

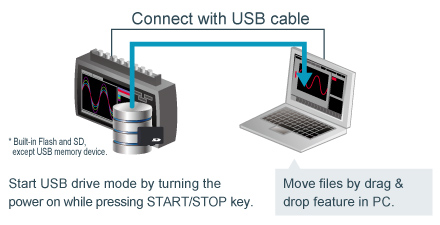

USB DRIVE MODE TO EASILY TRANSFER FILES TO PC

Graphtec midi Loggger GL980 Feature USB Drive Mode.jpg



USB DRIVE MODE

The USB drive mode function allows simple data transfer to the PC from built-in Flash memory and SD Flash memory card which acts as USB Flash drive on GL980. It also allows to add, remove, and delete files from storage device on GL980 from PC file browsing explorer.
