STANDARD ACCESSORIES

  • AC adapter with power cable

  • Quick start guide and Safety guide

  • CD-ROM (PC application software, User manual)

  • Cover (attached to the main body)

OPTIONAl ACCESSORIES

Item Model No. Description
Input/Output cable for GL B-513 2 m long (no clip on end of cable)
DC drive cable B-514 2 m long (no clip on end of cable)
Humidity sensor B-530 With 3 m long signal cable (with power plug)
Pelican case with custom foam inserts B-536US-980/2000 GL980/GL2000 Series pelican case with custom foam inserts, Weight 9.05 lbs
Interior L 16.75" x W 11.18" x D 6.12"
Exterior L 18.50" x W 14.06" x D 6.93"
Shunt resistor B-551 250 ohms (Converts signal from “4-20mA” to “1-5V”.)
Battery pack B-569 Rechargeable Lithium-ion battery (7.2 V, 2900mAh)
Cover B-579 Rubber protector (for replacement)
Carrying case B-581 Comming soon
Input cable, Safe probe - BNC RIC-141A Insulated, 1:1 (42pf), 1.2 m long, 300 V DC, CAT II
Input cable, BNC - BNC RIC-142 Insulated, 1.5 m long, 1000 V DC, CAT II
Input cable, Banana - BNC RIC-143 Insulated, 1.6 m long, 600 V DC, CAT II
Clip, Alligator (small size) RIC-144A For RIC-143, Aperture 11 mm, 300 V DC,
CAT II, Max. 15 A
Clip, Alligator (middle size) RIC-145 For RIC-143/147, Aperture 20 mm, 1000 V DC,
CAT II, Max. 32 A
Clip, Grabber RIC-146 For RIC-143/147, Aperture 5 mm, 1000 V DC,
CAT III, Max. 1 A
Input terminal adapter SMA-102 Banana (receptacle) to BNC (plug), Insulated
AC Adapter ACADP-20 Input: 100 - 240 V AC, Output: 24 V DC
Input / Output Cable for GLB-513

Input / Output Cable for GL
B-513

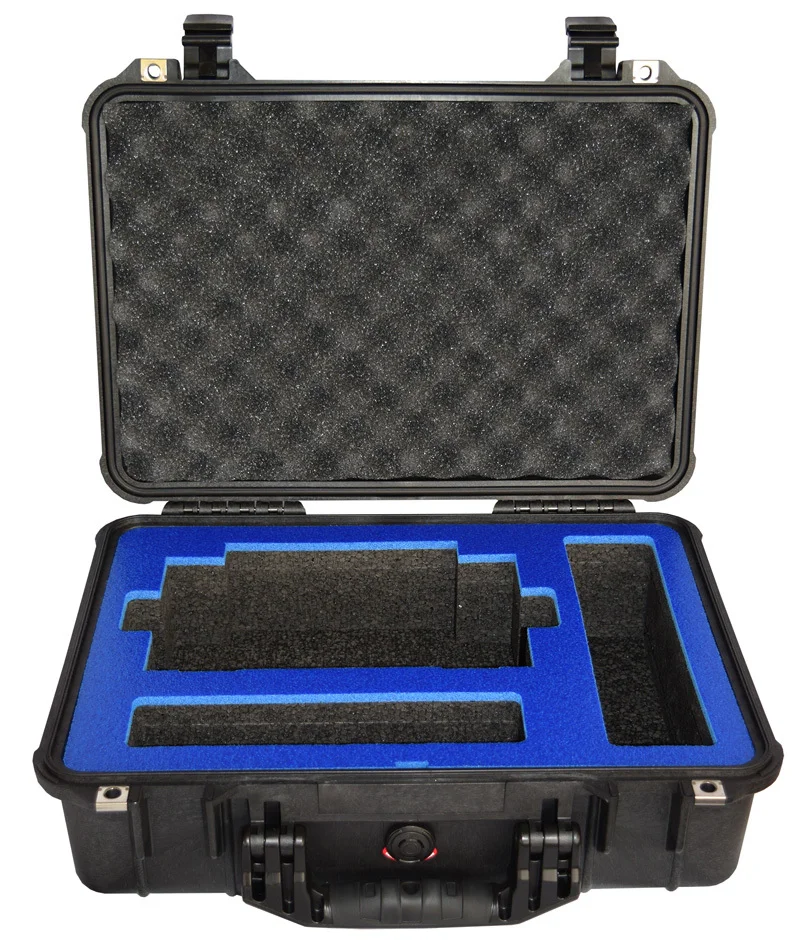

GL980/2000 Series Pelican Case w/custom foam insertsB-536US-980/2000

GL980/2000 Series Pelican Case
B-536US-980/2000

Safety Probe
(RIC-141A)

Isolated BNC cable (RIC-142)

Isolated BNC cable (RIC-142)

Isolated BNC banana cable(RIC-143)

Isolated BNC banana cable:(RIC-143)

Alligator clip (small) RIC-144A

Alligator clip (small)
RIC-144A

Alligator clip (middle) RIC-145

Alligator clip (middle) RIC-145

Grabber clips (RIC-146)

Grabber clips
(RIC-146)

  • Tilt stand set (including mounting screws M4)

  • Screws (M3.5) for input terminal

  • Ferrite core (attach to cable for radiation reduction)

Humidity sensor (B-530)

Humidity sensor
(B-530)

Shunt Resistance 250Ω
(B-551)
