HIGH SPEED 1 MS/S SIMULTANEOUS SAMPLING WITH ISOLATED INPUT

GL980 is equipped with an isolated input mechanism to protect signals from interferrences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurements.


Graphtec midi Loggger GL980 Multifunction Inputs.jpg

MULTIFUNCTION INPUT

Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.


Graphtec midi Loggger GL980 7 Inche LCD.jpg

LARGE EASY-TO-READ 7 INCH LCD

Adopts large TFT LCD with multiple methods for displaying information.



Graphtec midi Loggger GL980 Quick Easy SetUp Process.jpg

QUCIK AND EASY SET UP PROCESS

Simple operation with cursor and enter keys with six pre-set menu screens on large LCD.


GRAPHTEC MIDI DATA LOGGER GL840 USEFUL FUNCTIONS INTEGRATION ALARM NAVIGATION 3-WAYS DRIVE DISPLAY NETWORK

SUPPORTS LARGE BUILT-IN RAM (4MS/CH) AND BUILT-IN FLASH (4 GB)

Long term recording is made possible with 4 M sampling/ch built-in RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.


TYPICAL APPLICATIONS

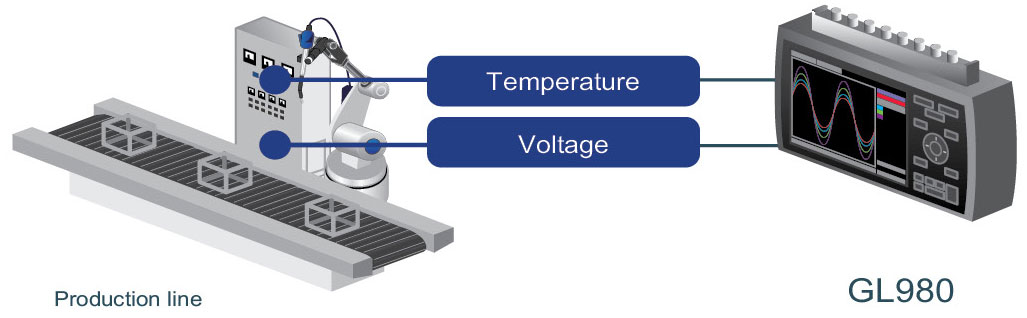

MEASUREMENT OF CONTROL DEVICE

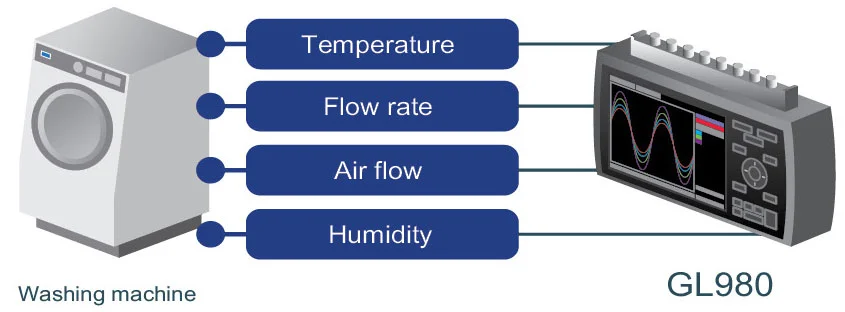

MEASUREMENT FOR TESTING WASHER AND DRYER

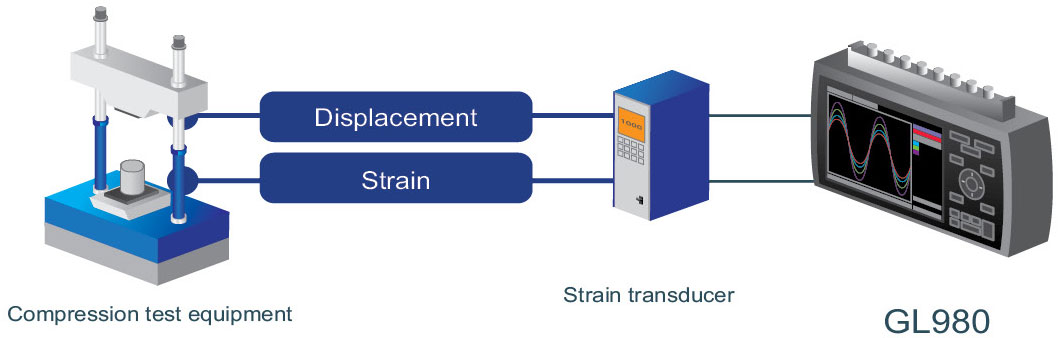

MEASUREMENT AS AN XY RECODER

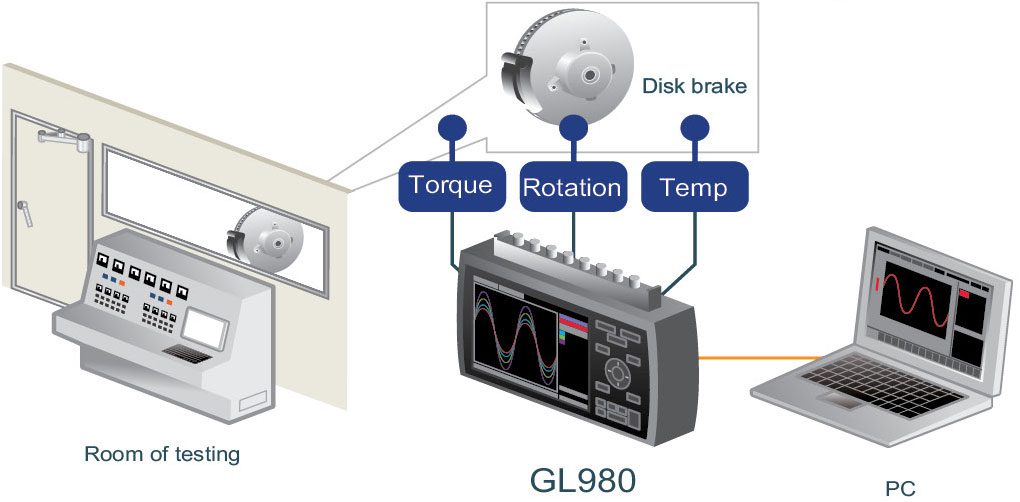

MEASUREMENT FOR BRAKE COMPONENTS TESTING
