GL2000 HV DATA LOGGER

GRAPHTEC MIDI DATA LOGGER GL840 REQUEST MORE INFORMATION

MAIN UNIT SPECIFICATIONS


      Item
      Description

      Display (LCD)
      Size
      7-inch TFT color LCD (WVGA: 800 x 480 dots)

      Information
      Waveform in Y-T with digital values, Enlarged waveforms, Digital values and Real-time statistical result values, XY graph

      Language
      English, French, German, Spanish, Russian, Chinese, Korean, Japanese

      Interface to PC
      Type
      Ethernet (10 BASE-T/100 BASE-TX), USB2.0

      Function
      Data transfer to PC (up to 1 ms sampling), Control command to GL2000

      Ethernet functions
      Web server function, FTP server function, NTP client function, DHCP client function, Email send function

      USB function
      USB mode (File transfer and deletion from built-in flash and SD on GL2000)

      Trigger function
      Trigger action
      Start or stop capturing data by triggering

      Trigger source
      • Start: Off, Measured signal, Alarm, External, Scheduled time, Scheduled day, Elapsed time

        • Stop: Off, Measured signal, Alarm, External, Scheduled time, Scheduled day, Elapsed time

      Combination
      Level OR, Level AND, Edge OR, Edge AND

      Threshold
      • Analog (*1): High or Low in level mode, Rising or Falling in edge mode,

         Window-in, Window-out

        • Logic: H or L  (4-channel signal pattern)

        • Pulse: High or Rising, Low or Falling, Window-in, Window-out

      Repeat action
      Off, On (Re-armed automatically)

      Trigger hold out
      Hold off repeat action in specified period

        • Mode: Previous start to next start, previous stop to next start

        • Time: zero second (no hold off) to 9999 hrs. 59 min. 59 sec

      Defection accuracy
      ± 0.5 % of measurement range

      Pre-trigger
      Up to the number of capturing data points (max. 4000000)

        specified in built-in RAM (only when built-in RAM is used)

      Alarm function
      Alarm action
      Displays and outputs a signal when alarm is detected

      Threshold
      • Analog input: High, Low, Window-in, Window-out

        • Logic input: H or L (signal in each channel)

        • Pulse input: High or Rising, Low or Falling, Window-in, Window-out

      Combination
      OR (Source channel can be assigned with OR condition to output port)

      Detection cycle
      Link with analog sampling

      Alarm holding
      On or Off

      Detection accuracy
      ± 0.5 % of measurement range

      Storagve deice
      Built-in RAM
      Four million samples for each channel

        • Memory partition: 4 M samples x 1 bank, 2 M sample x 2 banks,

          1 M samples x 4 banks, 500 k samples x 8 banks

        • Capturing data points: Specified 10 to 4000000

        • Data type: Captured data

        • Auto-save: Transfer captured data to other devices after capturing is completed

          (It can be enabled or disabled)

      Built-in Flash
      4 GB (for capacity of data: approx. 3.9 GB)

        • Data type: Captured data, Condition settings, Screen copy

      External USB (*2)
      Support USB Flash memory device (*3) by USB2.0 Type A port, Single port, No memory capacity limit

        • Data type: Captured data, Condition settings, Screen copy

      External

        SD CARD (*2)
      Support SDHC memory card (up to 32 GB) by SD Card slot, Single slot

        • Data type: Captured data, Condition settings, Screen copy

      Capturing mode
      Mode
      Off (Normal), Ring, Relay

      Off (Normal)
      Save data between start to stop

      Ring (*4)
      Save most recent data of specified number

        • Destination: Built-in RAM, Built-in Flash, USB or SD

        • Number of capturing data: 1000 to 10000000 data (*5)

        • Sampling: up to 1 MS/s (interval 1 μs) in built-in RAM,

          up to 1 kS/s (interval 1 ms) with GBD format in other device,

          up to 100 S/s (interval 10 ms) with CSV format in other device

      Relay
      Save data to multiple files with specified capturing time or file size (up to 4 GB) until recording data is stopped

        • Destination: Built-in Flash, USB or SD

        • Sampling: up to 1 kS/s (interval 1 ms) with GBD format,

          up to 100 S/s (interval 10 ms) with CSV format

      Data backup
      Interval
      Off, 1, 2, 6, 12, 24 hrs., specific time, or any time with key operation

        • Sampling: up to 1 kS/s (interval 1 ms) with GBD format,

          up to 100 S/s (interval 10 ms) with CSV format

      File destination
      Built-in Flash, USB or SD

      Hot-swapping

        external memory
      Hot-swapping USB or SD Flash memory with key operation during data backup

      Search function
      Function
      Search for specific point in captured data

      Search factor
      • Analog: Signal levels in each channel

        • Logic: 4-channel signal pattern

        • Pulse: Rising, Falling, Window-in, Window-out in each channel

        • Alarm: Alarm occurring point

      Calculation function
      Statistical
      Real-time: Display digital and statistical values at the same time

        • Function: Maximum, Minimum, Peak-to-peak (P-P), Average

      Replay: Statistical values between cursors in replay captured data

        • Function: Maximum, Minimum, Peak-to-peak (P-P), Average, RMS

      Between channels
      Addition, subtraction, multiplication and division for two analog inputs (only in GBD format)

      Scaling (Engineering unit) function
      Measured value can be converted to the specified engineering unit

        • Analog voltage: Converts using four reference points (gain, offset)

        • Temperature: Converts using two reference points (offset)

        • Pulse count: Converts using two reference points (gain)

      Annotation function
      Comment can be set in each channel, up to 31 alphanumeric

        characters and symbols (Display first 8 characters on screen)

      Operating environment
      0 to 40 ºC when driven by AC adapter or battery, 5 to 85 % RH (non condensed)

      Power source
      AC adapter: 100 to 240 V AC, 50/60 Hz

        DC power: 8.5 to 24 V DC (required cable option B-514)

        Battery pack: Two battery packs (option B-569) required

      Power consumption
      AC adapter

        (in 240 V AC)
      Approx. 39 VA (59 VA while charging battery) with disabling screen saver

        Approx. 34 VA (55 VA while charging battery) with enabling screen saver

      DC drive (24 V)
      Approx. 0.5 A (0.81 A while charging battery) with disable screen saver

        Approx. 0.43 A (0.76 A while charging battery) with enabling screen saver

      DC drive (12 V)
      Approx. 1 A (Cannot charge battery) with disable screen saver

        Approx. 0.85 A (Cannot charge battery) with enabling screen saver

      DC drive (8.5 V)
      Approx. 1.46 A (Cannot charge battery) with disable screen saver

        Approx. 1.22 A (Cannot charge battery) with enabling screen saver

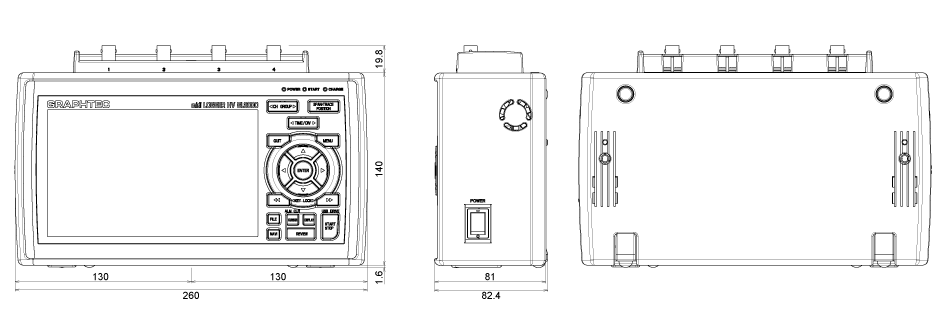

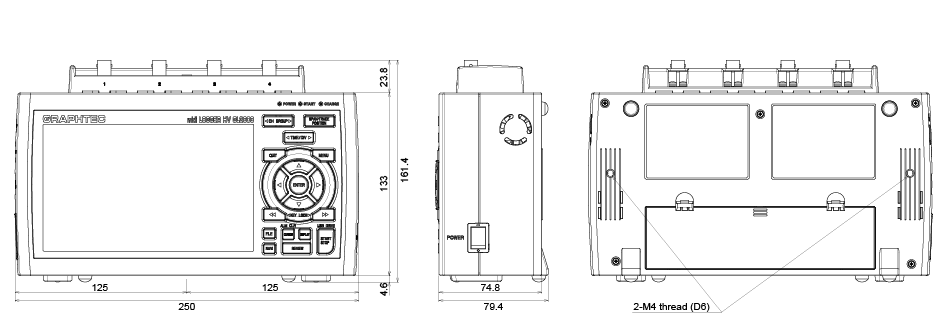

      External dimensions [W×H×D]
      Approx. 260 x 161 x 83 mm (with the cover)

      Weight
      Approx. 1.7 kg (the cover is attached, AC adapter and battery are not included)

      Vibration resistance
      Compatible with JIS Vibration test method for automobile Type 1 Class A (Vibration durability test: 5 m/s²)

Warranty
      3-Yr Standard Warranty

(*1) It can set for each channel.

(*2) File size of captured data is up to 4GB in each file.

(*3) Standard USB memory devices are required.

(*4) Required minimum capturing time is 15 seconds in GDB format, 30 seconds with CSV format.

(*5) When using built-in RAM, 10 to 4000000 data

ANALOG INPUT SPECIFICATIONS


      Item
      Description

      Number of input channels
      4 channels

      Type of input terminal
      Isolated BNC connector and Screw terminal (M3.5 screw) (*6)

      Input method
      All channels isolated unbalanced input, Simultaneous sampling

      Sampling speed (interval)
      1 M Samples/s to 1 Sample/min (1 μs to 1 min) and External (*7)

        • Sampling interval: 1, 2, 5, 10, 20, 50, 100, 200, 500 μs,

          1, 2, 5, 10, 20, 50, 100, 200, 500 ms, 1, 2, 5, 10, 20, 30 sec, 1 min

        * When using built-in RAM: 1 μs to 1 min, using other storage: 1 ms to 1 min

      Frequency response
      DC to 200 kHz (within +1/-4 dB)

      Measurement

        range
      Voltage (DC)
      20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100, 200, 500,

        1000 V, and 1-5V F.S. * Max. rated safety voltage: ± 600 V DC

      DC-RMS

        (DC coupling and

        rms value meas.)
      10, 25, 50, 100, 250, 500 mV rms, 1, 2.5, 5, 10, 25, 50, 100,

        250, 500, 1000 V rms F.S. * Max. rated safety voltage: 600 V rms

        • Crest Factor: in 1000 V range, up to 1.4 (peak: max. 850 V), in other range, up to 2

        • Frequency response: 20 Hz to 10 kHz

        • Measures the accumulated value of the DC and AC components in effective value, that is a true-RMS.

      Temperature
      Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26)

      Humidity
      0 to 100 % RH - using the humidity sensor (option B-530)

      Filter (Low pass)
      Off, Line (1.5 Hz), 5, 50, 500 Hz, 5, 50 kHz (at -3dB, -6dB/oct)

      A/D converter
      16-bit (effective resolution: 1/40000 of the measuring full range)

      Measurement

        accuracy (*8)
      Voltage (DC)
      ± 0.25% of Full Scale

      Voltage (RMS)
      ± 1.5% of Full Scale (Sine wave in 20 Hz - 10 kHz)

      Temperature

        (Thermocouple)

        (*9)
      Type
      Measurement range
      Measurement accuracy

      R/S
      0 ≤ TS ≤ 100 ºC

        100 < TS ≤ 300 ºC

        R: 300 < TS ≤ 1600 ºC

        S: 300 < TS ≤ 1760 ºC
      ± 7.0 ºC

        ± 5.0 ºC

        ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 3.0 ºC)

      B
      400 ≤ TS ≤ 600 ºC

        600 < TS ≤ 1820 ºC
      ± 5.5 ºC

        ± (0.05 % of reading + 3.0 ºC)

      K
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 1370 ºC
      ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 2.0 ºC)

      E
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 800 ºC
      ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 2.0 ºC)

      T
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 400 ºC
      ± (0.1 % of reading + 2.5 ºC)

        ± (0.1 % of reading + 1.5 ºC)

      J
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 100 ºC

        100 < TS ≤ 1100 ºC
      ± 3.7 ºC

        ± 2.7 ºC

        ± (0.05 % of reading + 2.0 ºC)

      N
      -200 ≤ TS < 0 ºC

        0 ≤ TS < 1300 ºC
      ± (0.1 % of reading + 3.0 ºC)

        ± (0.1 % of reading + 2.0 ºC)

      W
      0 ≤ TS ≤ 2315 ºC
      ± (0.1 % of reading + 2.5 ºC)

      Reference Junction Compensation (R.J.C.) accuracy: ± 1.0 ºC

      R.J. Compensation
      Internal or External

      Burnout
      Detecting burnout of Thermocouple with menu operation in free-run mode

      Input impedance
      1 MΩ ±5%

      Signal source impedance
      up to 1 kΩ

      Maximum input

        voltage
      Between

        (+) - (-) terminal
      20 mV to 2 V range: 30 V DC/AC,

        5 V to 1000 V range: 600 V DC/AC

      Between channels

        (-) - (-) terminals)
      600 V DC/AC (CAT III)

      Between

        channel - GND
      600 V DC/AC (CAT III)

      Isolation resistance
      Min. 50 MΩ (at 500 V DC) with between input and GND

      Common-mode rejection ratio
      Min. 90 dB (50/60 Hz, signal source impedance: max. 300 Ω)

      Signal-noise ratio (S/N)
      20 mV range: - 40 dB (when input terminals + and - are shorted)

        Other range: - 50 dB (when input terminals + and - are shorted)

(*6) Connections can be made individually to BNC terminal or M3.5 screw terminal.

(*7) Required Input/Output cable for GL series (B-513) option for connecting signal.

(*8) Subject to the following conditions:
• Room temperature is 23 ºC ± 5 ºC.
• When 30 minutes or more have elapsed after power has turned on.
• Filter is set to Line (1.5 Hz) in DC measurement and temperature.
• GND terminal is connected to ground.
• It is placed vertically.
• Average of the measured values is used.

(*9) Wire size of Thermocouple used is 0.32mm diameter in the T and K type, and 0.65mm diameter in other types.

EXTERNAL INPUT & OUTPUT SIGNAL SPECIFICATIONS


    Item
    Description

      External

        input/output
      Input (*10, *11)
      Logic or Pulse (4 channels), Trigger or Sampling (1 channel)

      Output (*10, *12)
      Alarm (4 channels) or Trigger (1 channel) with Alarm (3 channels)

      Input signal

        specification
      Logic and Pulse
      Voltage range: 0 to +30 V (common ground)

        Threshold: Approx. +2.5 V

        Hysteresis: Approx. 0.5 V (+2.5 to +3 V)

      External trigger

        and sampling
      Voltage range: 0 to +30 V (common ground)

        Threshold: Approx. +1.9 V

        Hysteresis: Approx. 0.2 V (+1.9 to +2.1 V)

      Logic measurement
      Measures the status (H or L) of the signal input to each channel

      Pulse

        measurement
      Measurement
      Counts pulse signals input to each channel

      Pulse count

        detection cycle
      10 μs to 1 hr. (Set separately from analog signal sampling interval)

      Maximum

        pulse input
      Maximum input frequency: 100 kHz,

        Maximum count number: 15 M count (24 bit counter)

      Measurement

        mode
      Rotation: Counts the number of pulses per detection cycle and then converts measured value to rotation in rpm

        • Span: 0 to 500 M rpm/F.S.

      Accumulating: Accumulates the number of pulses count per detection cycle from the start of measurement

        • Span: 0 to 20 M count/F.S. (Span is set automatically)

      Instant: Counts the number of pulses per detection cycle

        • Span: 0 to 20 M count/F.S.

      External trigger input (*10)
      Executes specified trigger action

      External sampling input (*10)
      Executes sampling of measurement signal with each external sampling signal

        • Maximum input frequency: 100 kHz (Time error: 1 μs or less)

      Output signal
      Alarm output
      Open collector (pull-up to 5 V with 10 kΩ resistor)

        • Maximum load is the 24 V and 100 mA

      Trigger output
      When a trigger is detected, output terminal releases approximately 500 μs width pulse (Low active)

(*10) Required Input/Output cable for GL series (B-513) option for connecting signal.

(*11) Select either Logic input (4 channels) or Pulse input (4 channels), select either external Trigger input or Sampling input.

(*12) Select either Trigger output (1 channel) or Alarm output (1 channel). Available 3 channels Alarm output always.

SOFTWARE SPECIFICTIONS


    Item
    Description

      Model name
      GL980_2000-APS

      Supported OS (*13)
      Windows10, 8.1, 8, 7 (SP1 or later)

      Functions
      Control GL980 and GL2000, Real-time data capture, Replay data, and Data format conversion

      Supported device
      1 unit of GL980 or GL2000

      Settings control
      Input condition, Capturing condition, Trigger/Alarm condition, other

      Transfer of

        captured data
      In memory

        capturing

        with GL2000
      Transfer the captured data to a PC sequentially while data is saved in built-in RAM on GL2000

        • Sampling interval: 1 μs to 1 min

      In real time

        capturing
      Transfer the captured data to a PC while data is saved in built-in flash memory, SD or USB on GL2000

        • Sampling interval: 1 ms to 1 min saved in GBD and CSV format

      Displayed information
      Analog waveform, Logic waveform, Pulse count waveform, Digital value

      Display mode
      Waveform in Y-T with digital values, Enlarged waveforms,

        Statistical calculation result values and history, XY graph

      File operation
      Converting data format to CSV from GBD binary with data between cursors or all data

      Past data screen function
      Displays the current data or past part of data by switching.

Available at sampling speed 1 kS/s to 1 S/m (1 ms to 1 min sampling interval)

      Statistical calculation
      Maximum, Minimum, Average and Peak-to-peak (p-p) value during data capturing

(*13) Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
In the Windows 7, edition of Ultimate, Enterprise, Professional and Home Premium are supported.

BATTERY PACK B-569 (OPTION) SPECIFICATIONS


    Item
    Description

    Capacity
    7.2 V, 2900 mAh

    Battery operating time
    Approx. 3 hrs. in displayed signal (LCD: max. brightness)

      Approx. 5 hrs. in screen saver mode (no display)

      * When two battery packs are installed in GL2000.

      Condition: 1 sample per second (1 s), saving captured data to built-in Flash, use two fully charged battery packs, temperature is 25 ºC

    Method of charging
    Charging on GL2000

    Charging time
    Approx 10 hrs. (charging two batteries)

    Other functions
    • If an AC power failure occurs, it will automatically switch from the AC adapter to the battery pack. (AC adapter priority use)

      • When the voltage of the battery pack reaches low, the measurement is automatically stopped after saving data file preserving the accumulated data.

DIMENSIONS

GL2000 EXTERNAL DIMENSIONS WITH COVER (RUBBER PROTECTOR)

GL2000 EXTERNAL DIMENSIONS
