GL2000 HV DATA LOGGER

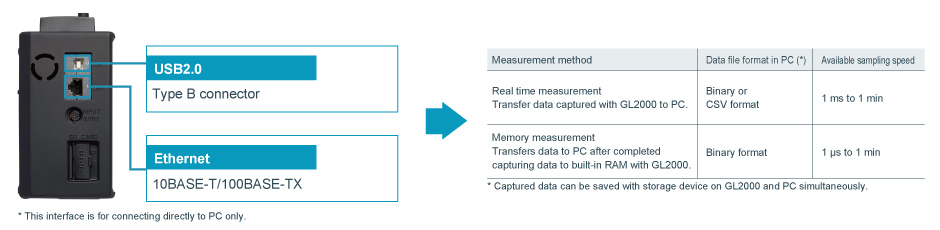

ETHERNET (LAN) & USB INTERFACE TO COMMUNICATION WITH PC
CONVENIENT FUNCTION WITH LAN (ETHERNET INTERFACE) CAPABILITY
When GL2000 is connected to LAN using the Ethernet interface, networked computer can monitor real-time measured value, transfer files, and change set ups without using application software (GL980_2000-APS software).

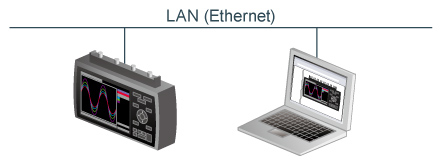

WEB SERVER FUNCTION
GL2000 can be controlled externally via a network on the WEB browser, which also supports real-time monitoring and ability to use the menu buttons.

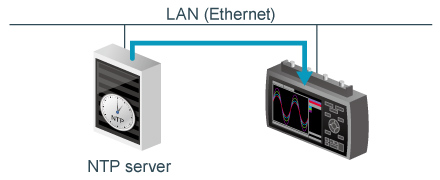

NTP CLIENT FUNCTION
The clock on the GL2000 is periodically synchronized with the NTP server.

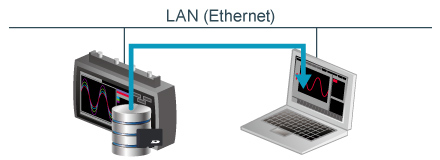

FTP SERVER FUNCTION
File in available storage device on GL2000 except built-in RAM can be transferred or deleted from the PC.

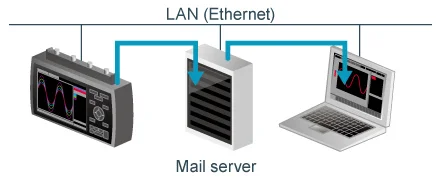

EMAIL SENDING FUNCTION
Send information when alarm occurs, or when battery is low, or when communication speed drops, or to notify when the space becomes limited on the storage device by an e-mail to specified address. Information can also be sent periodically by settings.

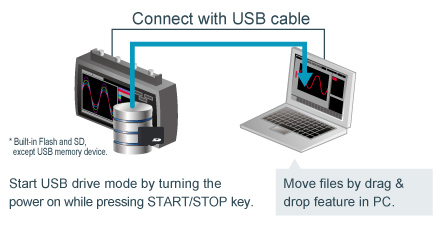

USB DRIVE MODE TO EASILY TRANSFER FILES TO PC
USB DRIVE MODE
The USB drive mode function allows simple data transfer to the PC from built-in Flash memory and SD Flash memory card which acts as USB Flash drive on GL2000. It also allows to add, remove, and delete files from storage device on GL2000 from PC file browsing explorer.
