GL2000 HV DATA LOGGER
FEATURES
HIGH SPEED 1 MS/S SIMULTANEOUS SAMPLING WITH ISOLATED INPUTS
GL2000 is equipped with an isolated input mechanism to protect signals from interferences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurement.
SIMULTANEOUS SAMPLING
GL2000 utilizes simultaneous sampling to eliminate slowdown in sampling rate by using multiple A/D converters in simultaneous sampling method. Four individual A/D converters in each channel sustains the maximum sampling speed for all four channels to measure high speed rapid voltage fluctuation and multi-channel vibration measurement.
Sampling interval: 1 µs to 1 min (in steps of 1, 2, 5)
EXTERNAL SAMPLING FUNCTION
Sampling of the logger is performed in sync with an external device using an external signal input.
Maximum input frequency: 100 kHz
* B-513 Input/Output cable for GL is required.

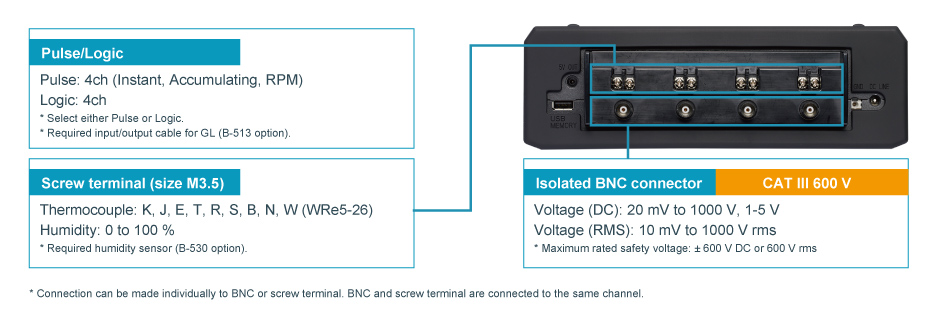

MULTIFUNCTION INPUT WITH CAT III MEASUREMENT CATEGORY
Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.

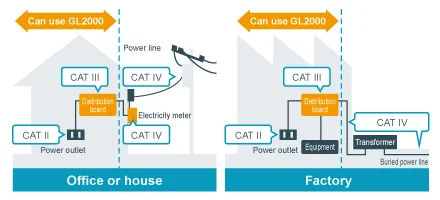

CAT III 600 V IS COMPATIBLE WITH MEASURING POWER SUPPLY CIRCUIT
in an equipment that captures power directly from the distribution panel.
MEASURES ABNORMALITIES IN A REPEATED WAVEFORM BY EFFECTIVELY MEASURING THE CORRESPONDING RMS VALUE
In 1000 Vrms range, Crest Factor is up to 1.41
* Maximum rated safety voltage: 600 V rms, Peak voltage: 850VIn other range, Crest Factor is up to 2.0

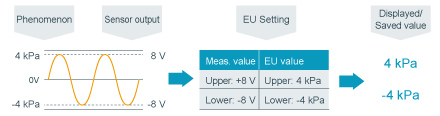

SCALING (ENGINEERING UNIT) FUNCTION
Measured voltage value can be converted to a specified engineering unit. The value can be displayed with the physical measurement value of the sensor and be saved into the data file with the converted values.
CALCULATION FUNCTION BETWEEN CHANNELS
Four arithmetic operations (Addition, subtraction, multiplication and division) are available using two analog input channels.
* Data can be saved only in GBD file format.
EXAMPLE:
CH2 = CH3 * CH1 (CH2 is a value obtained by multiplying the values of CH3 and CH1)
* Value of calculated results are displayed and saved into data file.
ALARM FUNCTION & SIGNAL OUTPUT
Threshold of an alarm can be set for each channel. When an alarm occurs, notification is sent by following methods.
ALARM THRESHOLD
Analog input: High, Low, Window-in, Window-out
Logic input: H or L (signal in each channel)
Pulse input: High or Rising, Low or Falling, Window-in, Window-out
WHEN ALARM IS DETECTED
Display to screen (Digital value of alarm's origin channel is displayed in red)
Save alarm information to measurement data file
Output alarm signal
Number of channel: 4 channels (Output channel can be arranged to each source channel in OR condition.)
Signal type: Open collector (pull-up to 5 V with 10 kΩ resistor), maximum load is the 24 V and 100 mA.
* Requires Input/Output cable for GL series (B-513 Option).

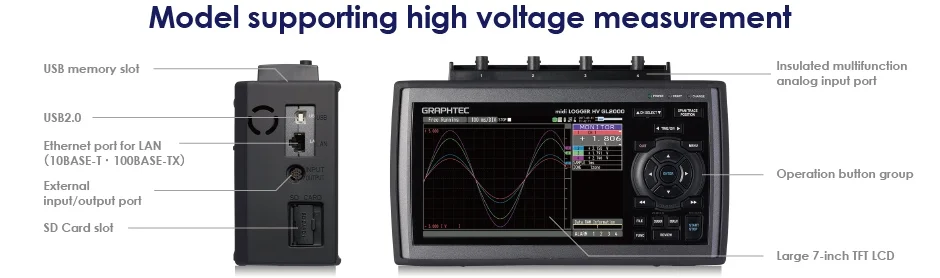

LARGE EASY-TO-READ 7-INCH LCD
Monitor data in multiple methods in addition to digital value display and full waveform display screen.

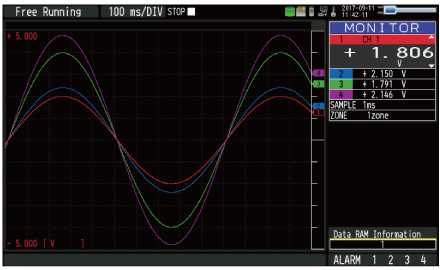

Y-T WAVEFORM MONITOR SCREEN
Displays data with analog waveform and digital value. Screen can also be split into 1, 2, 4 or 8 zones to display the channels in different zones.

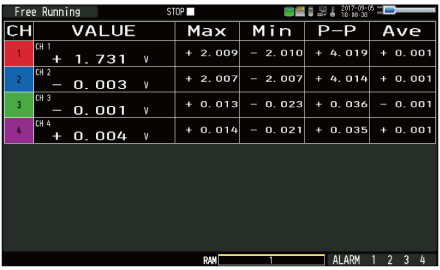

DIGITAL MONITOR SCREEN
Displays current data in digital value and results of real time statistical calculation. (Function: Maximum, Minimum, Peak-to-peak, and Average)
When displays only current data, it can be shown in 1, 2, 4 or 8 zones.

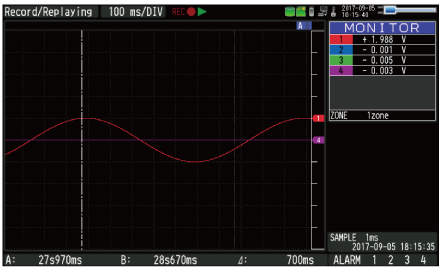

PAST WAVEFORM MONITOR SCREEN
Display the past part of the data while capturing data. Execute without stopping measurement and also scroll past data. Data screen can be switched with past and current.

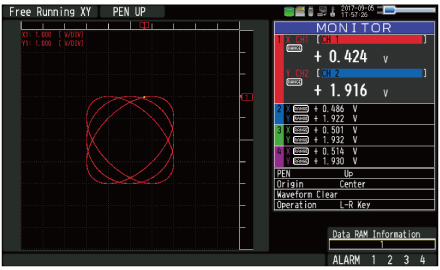

XY GRAPH MONITOR SCREEN
Emulates the classic XY chart recorder. Also supports features for pen up/down and position movement.

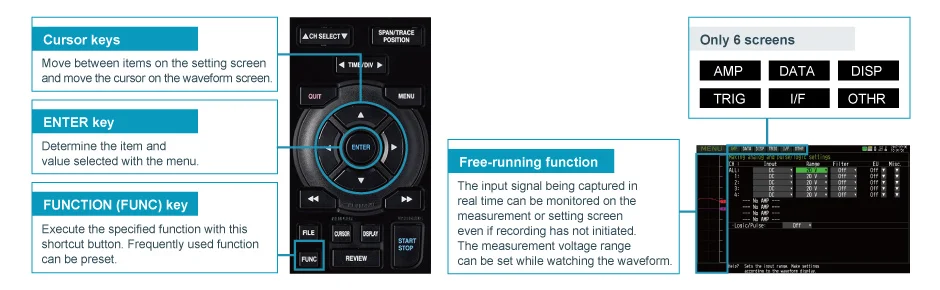

QUICK AND EASY SET UP PROCESS
Simple operation with cursor and enter keys, and menu-driven operation with six pre-set menu screens: AMP, DATA, DISP, TRIG, I/F (Interface) and OTHER.
OTHER HELPFUL FUNCTIONS
Delivers reliable measurements out at a location with unstable power supply.
Equipped with three types of options for power source, AC adapter, DC input, and battery pack. With a battery pack, GL2000 runs continuously for approximately 3 hours. If an AC power failure occurs, it will automatically switch from the AC adapter to the battery pack. Additionally, when the voltage of the battery pack reaches low, measurement is automatically stopped after saving the data file preserving the accumulated data. (Requires two battery packs (B-569 option) installed.)
INSTRUMENT IS IN COMPLIANCE WITH JIS VIBRATION TEST FOR AUTOMOBILE TYPE 1 CLASS A
(Vibration durability test: 5 m/s²)
Carrying case (B-581) [comming soon]
Portable case to store GL980 and signal input cable for easy handling.
Cover
Protect the main body from cosmetic damages and minor impacts. GL980 is shipped with cover attached.
* The cover is not to protect from hard impact.
SUPPORTS LARGE BUILT-IN RAM (4MS/CH) AND BUILT-IN FLASH (4 GB)
Long term recording is made possible with 4 M samples/ch built-in RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.
Approximate recording time
■ 4 channels of analog input. ■ Data is saved as a GBD file.
| Memory type | Data capacity |
1MS/s (1μs) |
100kS/s (10μs) |
1kS/s (1ms) |
1S/s (1s) |
|---|---|---|---|---|---|
| Built-in RAM | 4 M samples/ch | 4 seconds | 40 seconds | 66 minutes | 46 days |
| Built-in Flash memory | 3.9 GB | N/A | N/A | 3 days 19 hrs. | Over 1 year |
| External memory (SD/USB Flash memory)* | 4 GB | N/A | N/A | 4 days 3 hrs. | Over 1 year |
■ 4 channels of analog input with 4 channels of Pulse input. ■ Data is saved as a GBD file.
| Memory type | Data capacity |
1MS/s (1μs) |
100kS/s (10μs) |
1kS/s (1ms) |
1S/s (1s) |
|---|---|---|---|---|---|
| Built-in RAM | 4 M samples/ch | 4 seconds | 40 seconds | 66 minutes | 46 days |
| Built-in Flash memory | 3.9 GB | N/A | N/A | 1 days 12 hrs. | Over 1 year |
| External memory (SD/USB Flash memory)* | 4 GB | N/A | N/A | 1 days 15 hrs. | Over 1 year |
* When using 8 GB or larger memory, the size of data file will be up to 4 GB. The Relay mode enables extended recording time.
CONVENIENT DATA RECORDING FUNCTIONS
MEMORY DIVISION FUNCTION
Built-in RAM can be divided into 1, 2, 4, or 8 blocks with multiple high-speed recording measurement using the trigger function.
SINGLE BLOCK
When multiple measurements are executed, the captured data is overwritten in memory block 1.
DIVIDED INTO 8-BLOCKS
When multiple measurements are executed, recorded data is stored in the next memory block.
RELAY MODE
Save data to multiple files with specified capturing time or file size (up to 4 GB) until recording data is stopped.
AUTO SAVE FUNCTION
Recorded data saved in a built-in RAM is automatically copied as data file to a built-in Flash memory, SD Flash memory card or USB Flash memory with auto save function. An SD Flash memory card or a USB Flash memory can be used as a backup location when using the built-in RAM. The process will prevent losing any data captured in the built-in RAM by any overwrite or power cycles.
DATA BACKUP AND HOT SWAPS
The recorded data can automatically save to other storage device at specified regular intervals during data capture. (Maximum sampling speed: 1 kS/s (interval 1 ms) with GBD format, 100 S/s (interval 10 ms) with CSV format)
When the backup destination is set to a SD Flash memory card or a USB Flash memory device, memory device can be exchanged before the memory capacity becomes full using the key operation.

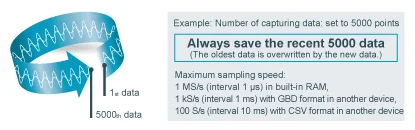

RING MODE
Saves most recent data of specified number after recording stops.
Number of capturing data 1000 to 10000000 data
* When using built-in RAM, 10 to 4000000 data

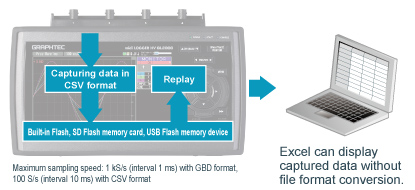

SAVE & RELAY DATA IN CSV FORMAT
Captured data can be saved with GBD (binary) and CSV (text) format. CSV format file can be played on GL2000 and opened with spreadsheet software.
SEARCH FUNCTION
The search function can locate a specific value within the captured data as well as finding abnormal values within data of a long-recorded file.
Search content
Search for analog signal levels, logic signal pattern, pulse signal levels or alarm point in captured data.
Analog signal channel: Signal levels in each channel
・Search mode: raising, falling, window-in, window-out
Logic signal channel: Signal level (H or L) in each channel
Pulse signal channel: Signal levels in each channel
・Search mode: raising, falling, window-in, window-out
Alarm: Alarm detected point on selected alarm signal output channel
