AMS2750E Compliance

CLICK HERE >> to download in pdf (542 KB)

Application Note: GL Series Compliance for AMS2750E Data Recorder

Digital Instrumentation / Data Acquisition Instruments Solution for Monitoring and Recording

AMS2750E-Compliant Dataloggers

Graphtec’s current line-up of data loggers adhere to the requirement set forth in the Aerospace Material Specification AMS2750, rev E and are compliant to the AMS2750E requirements. The specification covers pyrometric requirements for thermal processing equipment used in material heat treatment applications. It covers the accuracy requirement and equipment used for temperature uniformity surveys.

Shops that adhere to the standard can confidently heat treat components used in a wide range of aerospace, transportation, and other industries that demand traceable quality procedures for heat treatment.

Graphtec provides a range of recording and reporting solutions for the heat treatment industry that meet the requirements of AMS2750E. Our products provide highly reliable and accurate measurement and electronic recording of heat treatment processes in batch and continuous process operations.

Graphtec paperless electronic recording systems also perform temperature uniformity survey (TUS) work and reporting. Our electronic recording instruments provide far greater recording accuracy and much faster operator access to historical data than paper recorders. Standard network connectivity supports a host of convenience features such as web browser data monitoring, file transfers, and email messaging.

This document will explain how these products comply with the accuracy and temperature uniformity requirements of AMS2750E and it will help you select the best solution for your heat treat application.

Meeting & proving AMS2750E Accuracy Requirements

Graphtec GL series dataloggers meet the measurement accuracy requirements stated in AMS2750E Table 3 for Field Test Instruments. When these models are specified for TUS work and for Nadcap auditing purposes, a calibration certificate and AMS2750E thermocouple accuracy certificate should be ordered with the equipment to prove accuracy.

Instrument Calibration:

The calibration certificate validates the instrument measurement calibration for all supported measurement ranges. NIST and ISO 17025 calibration certificates are available. All calibration work is performed in Graphtec’s California office with partnership with PME Services, Inc. who is a ISO 17025-accredited calibration lab. AMS2750E requires a three-month calibration interval for Field Test Instruments. Equipment can be returned to Graphtec for this purpose or it can be performed by a local accredited calibration lab.

Calibration Certificate Sample Data Sheet



	Item
	Accuracy
    Range
    Specification Min.-Max.
	Results
	Pass/Fall


Voltage Accuracy (GL220/GL820/GL7-V/GL7-M)
±0.1% of F.S.(FILTER (10) ON)Input: 100%

    20mV
    19.980mV - 20.020mV
	19.996
	Pass


    50mV
    49.96mV - 50.05mV
	50.00
	Pass


    2V
    1.9980V - 2.0020V
	1.999
    Pass


	50.00
	49.95V - 50.05V
	50.00
	Pass




    Item
    Accuracy
	Range Accuracy
	Specification Min.-Max.
	Results
	Pass/Fall




    Temperature Accuracy
    -200℃≦Ts≦-100℃
±(0.1%ofrdg+1.5℃)
-100℃＜Ts≦MAX
±(0.1%ofrdg+0.5℃)
Reference contact
compensation accuracy
±0.5℃
(FILTER(10) ON)

	T
0˚C

	-1.0℃～1.0℃
		Max. -0.2 Min. 0.2
	  		Pass


    )
    -200℃≦Ts≦-100℃
±(0.1%ofrdg+2.0℃)
-100℃＜Ts≦1370℃
±(0.1%ofrdg+1.0℃)
Reference contact
compensation accuracy
±0.5℃
(FILTER(10) ON)

	K
0˚C

	-1.5℃～1.5℃
	  		Max. -0.2 Min. 0.2
	  		Pass


AMS2750E Thermocouple Accuracy Certificate:

To prove thermocouple measurement accuracy for a specific TUS thermocouple type, span and temperature set points, an AMS2750E accuracy certificate can be provided. AMS2750E thermocouple accuracy certificate indicates actual measured performance of set point temperature values input by a precision calibration instrument, using the same thermocouple type and units used in the customer's application. Thermocouple type, units and range must be supplied with the order to obtain this certificate.

AMS2750E thermocouple accuracy for GL240


        Item
        Description

    Measurement

          accuracy *13
        Voltage
        ± 0.1% of F.S. (Full Scale)

        Temperature

          (Thermocouple)*14
        Type
        Measurement    range

          (TS: Temp Sense)
        Measurement accuracy

        R
        0 ≤ TS ≤ 100 ºC
        ± 5.2 ºC

        100 < TS ≤ 300 ºC
        ± 3.0 ºC

        300 < TS ≤ 1600 ºC
        ± (0.05% of rdg. +    2.0 ºC)

        S
        0 ≤ TS ≤ 100 ºC
        ± 5.2 ºC

        100 < TS ≤ 300 ºC
        ± 3.0 ºC

        300 < TS ≤ 1760 ºC
        ± (0.05% of rdg. +    2.0 ºC)

        B
        400 ≤ TS ≤ 600 ºC
        ± 3.5 ºC

        600 < TS ≤ 1820 ºC
        ± (0.05% of rdg. +    2.0 ºC)

        K
        -200 ≤ TS ≤ -100 ºC
        ± (0.05% of rdg. +    2.0 ºC)

        -100 < TS ≤ 1370 ºC
        ± (0.05% of rdg. +    1.0 ºC)

        E
        -200 ≤ TS ≤ -100 ºC
        ± (0.05% of rdg. +    2.0 ºC)

        -100 < TS ≤ 800 ºC
        ± (0.05% of rdg. +    1.0 ºC)

        T
        -200 ≤ TS ≤ -100 ºC
        ± (0.1% of rdg. + 1.5    ºC)

        -100 < TS ≤ 400 ºC
        ± (0.1% of rdg. + 0.5    ºC)

        J
        -200 ≤ TS ≤ -100 ºC
        ± 2.7 ºC

        -100 < TS ≤ 100 ºC
        ± 1.7 ºC

        100 < TS ≤ 1100 ºC
        ± (0.05% of rdg. +    1.0 ºC)

        N
        -200 ≤ TS < 0 ºC
        ± (0.1% of rdg. + 2.0    ºC)

        0 ≤ TS ≤ 1300 ºC
        ± (0.1% of rdg. + 1.0    ºC)

        W
        0 ≤ TS ≤ 2000 ºC
        ± (0.1% of rdg. + 1.5    ºC)

        R.J.C.
        ± 0.5 ºC

AMS2750E thermocouple accuracy for GL840-M / GL840-WV


        GL840-M
        GL840-WV

    Temperature (Thermocouple)

        Type
        Measurement range

          (TS: Temp Sense)
        Measurement    accuracy
        Measurement    accuracy

        R
        0 ≤ TS ≤ 100 ºC
        ± 5.2 ºC
        ± 4.5 ºC

        100 < TS ≤ 300 ºC
        ± 3.0 ºC
        ± 3.0 ºC

        300 < TS ≤ 1600 ºC
        ± (0.05% of rdg. +    2.0 ºC)
        ± 2.2 ºC

        S
        0 ≤ TS ≤ 100 ºC
        ± 5.2 ºC
        ± 4.5 ºC

        100 < TS ≤ 300 ºC
        ± 3.0 ºC
        ± 3.0 ºC

        300 < TS ≤ 1760 ºC
        ± (0.05% of rdg. +    2.0 ºC)
        ± 2.2 ºC

        B
        400 ≤ TS ≤ 600 ºC
        ± 3.5 ºC
        ± 3.5 ºC

        600 < TS ≤ 1820 ºC
        ± (0.05% of rdg. +    2.0 ºC)
        ± 2.5 ºC

        K
        -200 ≤ TS ≤ -100 ºC
        ± (0.05% of rdg. +    2.0 ºC)
        ± 1.5 ºC

        -100 < TS ≤ 1370    ºC
        ± (0.05% of rdg. +    1.0 ºC)
        ± 0.8 ºC

        E
        -200 ≤ TS ≤ -100 ºC
        ± (0.05% of rdg. +    2.0 ºC)
        ± 1.0 ºC

        -100 < TS ≤ 800 ºC
        ± (0.05% of rdg. +    1.0 ºC)
        ± 0.8 ºC

        T
        -200 ≤ TS ≤ -100 ºC
        ± (0.1% of rdg. + 1.5    ºC)
        ± 1.5 ºC

        -100 < TS ≤ 400 ºC
        ± (0.1% of rdg. + 0.5    ºC)
        ± 0.6 ºC

        J
        -200 ≤ TS ≤ -100 ºC
        ± 2.7 ºC
        ± 1.0 ºC

        -100 < TS ≤ 100 ºC
        ± 1.7 ºC
        ± 0.8 ºC

        100 < TS ≤ 1100 ºC
        ± (0.05% of rdg. +    1.0 ºC)
        ± 0.6 ºC

        N
        -200 ≤ TS < 0 ºC
        ± (0.1% of rdg. + 2.0    ºC)
        ± 2.2 ºC

        0 ≤ TS ≤ 1300 ºC
        ± (0.1% of rdg. + 1.0    ºC)
        ± 1.0 ºC

        W
        0 ≤ TS ≤ 2000 ºC
        ± (0.1% of rdg. + 1.5    ºC)
        ± 1.8 ºC

        R.J.C.
        ± 0.5 ºC
        ± 0.3 ºC

        Temperature (RTD)

        Type
        Measurement range

          (TS: Temp Sense)
        Accuracy
        Accuracy

        Pt100
        -200 ≤ TS ≤ 100 ºC
        ± 1.0 ºC
        ± 0.6 ºC

        100 < TS ≤ 500 ºC
        ± 0.8 ºC

        500 < TS ≤ 850 ºC
        ± 1.0 ºC

        Pt1000
        -200 ≤ TS ≤ 100 ºC
        ± 0.8 ºC
        ± 0.6 ºC

        100 < TS ≤ 500 ºC
        ± 0.8 ºC

        JPt100
        -200 ≤ TS ≤ 100 ºC
        ± 0.8 ºC
        ± 0.6 ºC

        100 < TS ≤ 500 ºC
        ± 0.8 ºC

AMS2750E thermocouple accuracy for GL2000 / GL980


      Item
      Description

    Measurement

      accuracy

      Type
      Measurement range
      Measurement accuracy

      R/S
      0 ≤ TS ≤ 100 ºC

        100 < TS ≤ 300 ºC

        R: 300 < TS ≤ 1600 ºC

        S: 300 < TS ≤ 1760 ºC
      ± 7.0 ºC

        ± 5.0 ºC

        ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 3.0 ºC)

      B
      400 ≤ TS ≤ 600 ºC

        600 < TS ≤ 1820 ºC
      ± 5.5 ºC

        ± (0.05 % of reading + 3.0 ºC)

      K
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 1370 ºC
      ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 2.0 ºC)

      E
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 800 ºC
      ± (0.05 % of reading + 3.0 ºC)

        ± (0.05 % of reading + 2.0 ºC)

      T
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 400 ºC
      ± (0.1 % of reading + 2.5 ºC)

        ± (0.1 % of reading + 1.5 ºC)

      J
      -200 ≤ TS ≤ -100 ºC

        -100 < TS ≤ 100 ºC

        100 < TS ≤ 1100 ºC
      ± 3.7 ºC

        ± 2.7 ºC

        ± (0.05 % of reading + 2.0 ºC)

      N
      -200 ≤ TS < 0 ºC

        0 ≤ TS < 1300 ºC
      ± (0.1 % of reading + 3.0 ºC)

        ± (0.1 % of reading + 2.0 ºC)

      W
      0 ≤ TS ≤ 2315 ºC
      ± (0.1 % of reading + 2.5 ºC)

      Reference Junction Compensation (R.J.C.) accuracy: ± 1.0 ºC

AMS2750E thermocouple accuracy for GL7000 with GL7-M Module


    Measurement accuracy (*1)

        Temperature
        Thermocouple
        Measurement    range

          (TS: Temperature Sensed)
        Measurement    accuracy

        R/S
        0    ≤ TS ≤ 100ºC
        ±5.2ºC

        100 < TS ≤ 300ºC
        ±3.0ºC

        R: 300 < TS ≤ 1600ºC
        ±(0.05%    of reading + 2.0ºC)

        S: 300 < TS ≤ 1760ºC
        ±(0.05%    of reading + 2.0ºC)

        B
        400    ≤ TS ≤ 600ºC
        ±3.5ºC

        600 < TS ≤ 1820ºC
        ±(0.05%    of reading + 2.0ºC)

        K
        -200    ≤ TS ≤ -100ºC
        ±(0.05%    of reading + 2.0ºC)

        -100 < TS ≤ 1370ºC
        ±(0.05%    of reading + 1.0ºC)

        E
        -200    ≤ TS ≤ -100ºC
        ±(0.05%    of reading + 2.0ºC)

        -100 < TS ≤ 800ºC
        ±(0.05%    of reading + 1.0ºC)

        T
        -200    ≤ TS ≤ -100ºC
        ±(0.1%    of reading + 1.5ºC)

        -100 < TS ≤ 400ºC
        ±(0.1%    of reading + 0.5ºC)

        J
        -200    ≤ TS ≤ -100ºC
        ±2.7ºC

        -100 < TS ≤ 100ºC
        ±1.7ºC

        100 < TS ≤ 1100ºC
        ±(0.05%    of reading + 1.0ºC)

        N
        -200    ≤ TS < 0ºC
        ±(0.1%    of reading + 2.0ºC)

        0 ≤ TS ≤ 1300ºC
        ±(0.1%    of reading + 1.0ºC)

        W
        0    ≤ TS ≤ 2000ºC
        ±(0.1%    of reading + 1.5ºC)

        Reference Junction Compensation (R.J.C.)    accuracy: ±0.5ºC

          * Wire size of thermocouple used is 0.32 mm diameter in the T type and 0.65    mm diameter in other types.

        RTD
        Measurement    range
        Driving    current
        Accuracy

        Pt100
        -200    to 850ºC (F.S. = 1050ºC)
        1    mA
        ±1.0ºC

        JPt100
        -200    to 500ºC (F.S. = 700ºC)
        1    mA
        ±0.8ºC

        Pt1000
        -200    to 500ºC (F.S. = 700ºC)
        0.2    mA
        ±0.8ºC

Graphtec Data Loggers and Data Acquisition Platform

Data Acquisition Systems and Test & Measurement instruments can often times add heavy loads to R&D cost and engineering labor hours due to their sophisticated software mechanisms and integration. Graphtec Dataloggers and Data Platform eliminate these problems with a versatile system that launches test applications quickly and cost effectively.

KEY FEATURES

Portability and versatility for onsite-testing needs
Multifunction inputs for multiple signal recordings
Channel-to-channel isolation for enhanced safety
Quick solution for real-time excel recording and reporting
Field-ready instrument with large format display and ruggedness

Portable Dataloggers

The versatile dataloggers from Graphtec offers portable measurement, real-time display, and electronic recording systems ideal for bench-set system and portable field application. Graphtec offers solutions from a single channel temperature and humidity monitoring solutions to multi-channel exceeding up to 200 channels on the portable instruments that offer flexibility in going from one test to another relatively quickly without the need for programming or software setup.

Help operations are available on all of our GL series dataloggers with ability to connect to the wireless network and wired RJ-45 network. The remote monitoring capability offers direct access to the web server platform, FTP push and pull capability, as well as email notification for periodic email with test data and alert threshold emails.

GL240 – 5.7’’ display with up to 10 channel measurements. USB/LAN connection can connect up to 10 GL240s to be controlled real time from the APS software.

GL840-M – 7.0’’ display with up to 200 channel measurements with extension blocks. USB/LAN connection can connect up to 10 GL840s to be controlled real time from the APS software. Maximum 500 channels.

GL840-WV – 7.0’’ display with up to 200 channel measurements with extension blocks for higher potential voltage application such as battery monitoring and solar panel monitoring. USB/LAN connection can connect up to 10 GL840s to be controlled real time from the APS software. Maximum 500 channels.

GL2000 – 7.0’’ display with up 4 channel high voltage, high speed voltage measurement. Up to 600VDC/VAC with 500Vrms recording capability. Isolated inputs with 1MS/s sampling capability.

GL980 – 7.0’’ display with up 8 channel high voltage, high speed voltage measurement. Up to 500VDC/VAC with 250Vrms recording capability. Isolated inputs with 1MS/s sampling capability.

Modular Data Acquisition

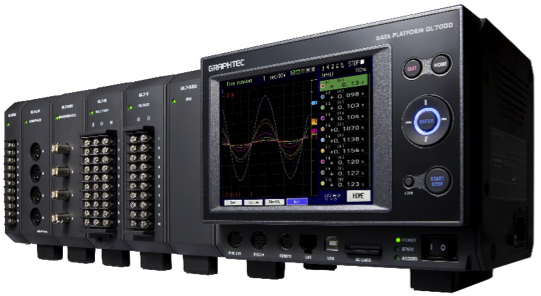

GL7000 DATA PLATFORM is our new fully modular data recorder platform with modules available for accelerometers, strain gauges, resistors, temp/voltage inputs, high speed voltage inputs, and high voltage inputs up to 1000V. Multi-unit configuration can support up to 10 modules with maximum 1150 channels. Sync cable is available to connect up to 5 main GL7000 unit together for accurate timing synchronization. Touch panel display is capable of setting up all the configuration for the channels as well as START/STOP recording with real time display of the measured signals.

Temperature Uniformity Survey Software

Graphtec APS software provides automated temperature uniformity report generation using the data files from the following products:

• GL100/GL240/GL840/GL2000/GL980

GL-Connection software is a real time data acquisition software in generating reports for the following products:

• GL240/GL840/GL2000/GL980/GL7000

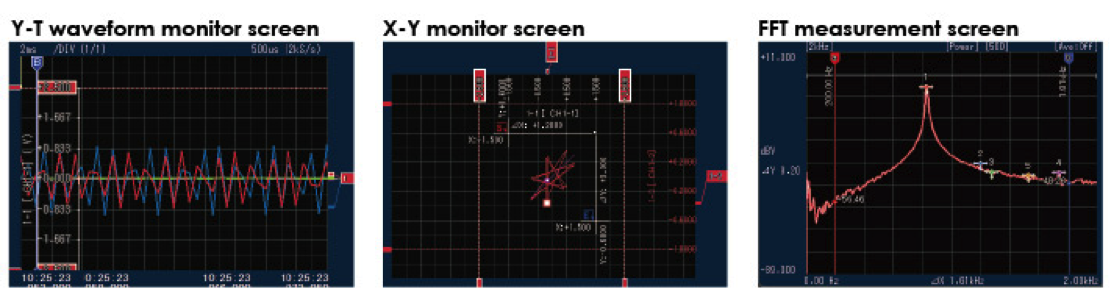

Data Acquisition Software GL-Connection

GL-Connection software is an integrated application software for the GL7000 and other GL series. When the software is used with the GL7000, you can control and display the data along with analysis view. Data captured by other GL series is compatible with the GL-Connection and APS software. Measurement signal can be displayed in various types of screens according to various applications.
