CE6000 Plus Series
The GRAPHTEC CE6000 Plus Series Vinyl Cutter / Cutting Plotter is amongst the easiest to use on the market whilst yielding high quality results every time.
Built-in front control panel provides complete parameter control including eight preset cutting conditions, as well as advanced features such as tangential control mode for smaller designs, down force offset, pen up speed, blade wear monitoring and more. With a 25 pin RS-232C or the High Speed USB 2.0 control interface and a large 3.7” LCD screen, managing your cutting jobs is simpler than ever!
The Graphtec CE6000 Plus Series comes standard with: floor stands (except for the 15" CE-6000-40 model comes with rear media roll rack), Cutting Master Plug-in, plus Graphtec's ARMS (Automatic Registration Mark Sensor) system.
The latest ARMS 5.0 (Automatic Registration Mark Sensing) system standard with Graphtec CE6000 Plus Series vinyl cutter offers unparalleled media plotting and cutting accuracy via four-point rather than the traditional three point registration and an automatic paneling function for longer-length cutting and tracking requirements. It also has a choice of operating modes to complement the user's skill levels and a range of different tool condition settings. Supported software includes advanced cutting functions that improve work efficiency and productivity.
EXPAND THE RANGE OF POSSIBLE CUTTING OPERATION WITH HIGH-QUALITY, HIGH-RELIABILITY, HIGH-PERFORMANCE, AND EASY TO OPERATE
THE COST / PERFORMANCE LEADING CUTTING PLOTTER CONTINUES TO EVOLVE:
Reliable cutting quality for variety applications
Intuitive and easy operation
Improved application software
Includes Graphtec ARMS (Advanced Registration Mark Sensor)
Contour Cut Pre-Printed Graphics
450 grams of force
Tangential Emulation
1 Table top, desktop Size (15″)
2 Included Stand Sizes (24″ and 48″)
2 Year Standard Warranty
Graphtec CE6000 Plus series vinyl cutter is available in three widths:
CE6000-40 Plus, max. cutting W 14" (35.6 cm)
CE6000-60 Plus, max. cutting W 23" (58.4 cm)
CE6000-120 Plus, max. cutting W 47" (119.4 cm)
CE6000 Plus Series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.
3.7 inch wide user-friendly LCD control Panel
Setting can be easily configured using the large LCD (3.7-inches, 240x128 dots) and tactile control panel. It is also icon driven and supports 10 languages.
3-SIZES TO BEST SUIT YOUR APPLICATIONS
The size of three models corresponds to their mountable media with: 484 mm (19 in.), 712 mm (28 in.), and 1346 mm (52 in.). It enable to support variety of applications.
MAX FORCE OF 4.41 N (450 GF) SPEED OF 1000 MM/S
With maximum force of the 4.41 N (450 gf) and a maximum speed of 1000 mm/s, it enable to cut various media with high productivity.
RELIABLE LONG LENGTH TRACKING UP TO 196.85 IN
Its media stocker ensures a more stable media feed as up to 16.40 ft long. The long size of cutting object is able to cut accurate and stable using the automatic paneling function. The stand and basket is used. In the CE6000-40 Plus Series, it is up to 6.56 ft long
CUTTING ABILITY
Self-Adhesive Sheet (Marking, Label)
Paper or Others (Medias w/no Liner)
SWITCHING THE PRESSURE OF THE CENTER PUSH ROLLER
On the CE6000-120 PLUS, the pressure of the center push roller has 2 settings to suit all types of media. It prevents media lifting without leaving a trace mark and provides stable long-length cutting.
MEDIA BRAKE ON THE MEDIA STOCKER
A brake system is incorporated to assist loading heavy rolls of media properly.
*CE6000-60 PLUS / 120 PLUS
4-POINT AXIS ALIGNMENT
This feature compensates for any skewing.
EXPANDED EFFECTIVE CUTTING AREA
ARMS system expands the cutting area to include outside of the area.
MULTIPLE-MARK COMPENSATION
When a design is printed using the matrix copy function, the marks are read and contour cutting is repeated for each copy.

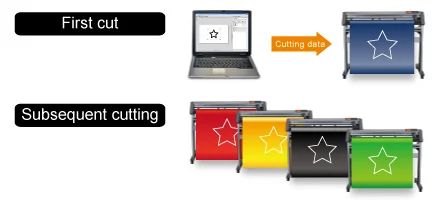

COPY WITH ARMS
COPY key allows fast access for making copies of downloaded data.
| Item | CE6000-40 PLUS | CE6000-60 PLUS | CE6000-120 PLUS | |
|---|---|---|---|---|
| Configuration | Grit roller with digital servo drive system | |||
| Maximum cutting area (W x L) | 14.76 in x 164 ft 0.5 in (375 mm × 50 m) (*1) |
23.74 in x 164 ft 0.5 in (603 mm × 50 m) (*1) |
47.75 inc x 164 ft 0.5 in (1213 mm × 50 m) (*1) |
|
| Cutting area of guaranteed accuracy(W x L) (when using the basket) |
14.01 in x 6 ft 6.74 in (356 mm × 2 m) (*1) |
1 ft 11 in x 16 ft 4.85 in (584 mm × 5 m) (*1) |
3 ft 11 in x 16 ft 4.85 in (1194 mm × 5 m) (*1) |
|
| Mountable media width | Min. 1.96 in to Max.19.05 in (Min. 50 mm to Max. 484 mm) | Min. 1.97 in to Max. 28.03 in (Min. 50 mm to Max. 712 mm) | Min. 4.7 in to Max. 53 in (Min. 120 mm to Max. 1346 mm) | |
| Number of push rollers | 2 rollers | 3 rollers | ||
| Maximum cutting speed | 1 ft 11.6 in/s (600 mm/s), in all directions | 900 mm/s, at 45º angle | 1000 mm/s, at 45º angle | |
| Maximum acceleration | 69.55 ft (21.2 m/s2), at 45º direction | 45.60 ft (13.9 m/s2), at 45º direction | ||
| Maximum cutting force | 4.41 N (450 gf) in 38 steps | |||
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and type of media) | |||
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy) |
|||
| Interface | RS-232C, USB2.0 | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ emulation (Set by command or auto-detect) | |||
| Display | Graphic type LCD with back-light (240dots x 128dots), supports 10 languages | |||
| Registration mark sensing system | Marks are scanned by an optical sensor (ARMS5.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect |
|||
| Alignment accuracy | Maximum 0.3 mm with printed image (when reading registration marks specified by this machine) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
| External dimensions (W x D x H) | Approx. 26.45 x 13.30 x 10.47 in (672 × 338 × 266 mm) |
Approx. 35.43 x 23.34 x 41.18 in (900 × 593 × 1046 mm) |
Approx. 60.67 x 28.97 x 49.21 in (1541 × 736 × 1250 mm) |
|
| Weight | Approx. 23.14 lb (10.5 kg) | Approx. 46.29 lb (21 kg) (including stand 17.85 lb, 8.1 kg) |
Approx. 89.28 lb (40.5 kg) (including stand 36.15lb, 16.4 kg) | |
| Compatible OS (*2) | Windows 10 / 8.1 / 8 / 7 Mac OSX 10.6 - 10.14 |
|||
| Included software | Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac), Windows driver, Cutting Plotter Controller |
|||
| Compatibility Standards | Safety | UL / cUL, CE mark, RoHS Directive | ||
| EMC | VCCI Class A, FCC Class A, EN55022 Class A | |||
(*1) Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2) For more information regarding OS / application software compatibility, please check the Graphtec website or contact your local representative of Graphtec.
Looking for quality vinyl cutter machine for commercial, intermedia or entry level, Graphtec can help your vinyl cutting process become easier and improve productivity. Graphtec globally manufactures hight quality vinyl cutter machines. With years of experience in plot cutter, Graphtec is industry leader in desktop vinyl cutter, desktop vinyl cutter machine, sticker cutter, sticker cutter machine, sticker cutting machine. Graphtec is trusted by world renowned organizations around the world, our cut plotter precisely cut vinyl sheet and cut vinyl roll. If you are looking for the high quality vinyl roll feed cutters, Graphtec specialists are onsite to provide you guidelines on how to choose roll feed cutter machine or flatbed cutter machine to suit your production needs, we have you covered!
Standard Accessories
| Item | QTY | Description |
|---|---|---|
| Power cord | 1 | Cord type varies by country |
| Cutting blade holder | 1 | PHP33-CB09N-HS for CB09 cutting blade |
| Cutting blade | 1 | CB09UB, 0.9mm dia. supersteel blade |
| Loupe | 1 | PM-CT-001, for checking length and quality of blade tip |
| Separate cutter | 1 | For manually cutting from sheets and rolls |
| Fiber-tip pen holder | 1 | PHP31-FIBER for KF700 fiber-tip pen |
| Water-based fiber-tip pen | 1 | KF700-BK (black ink) |
| Carrier sheet of media(*3) | 1 | A3 size, 1 sheet/pack for CE6000-40 |
| Tray for roll media stock | 1 | For CE6000-40, -60(*4) |
| Stand | 1 | For CE6000-60(*4), CE6000-120 |
| USB cable | 1 | USB cable, 2.9m long |
| DVD-ROM | 1 | User manual, Windows driver, Plotter Controller |
| Printed document | 1 | Quick manual, Safety manual |
(*3) It is included only with CE 6000-40 Plus Series.
(*4) In the CE6000-60 Plus Series, either the roll media stock tray or the stand will be included depending on the order.
Cutting Blade Holder
PHP33-CB09N-HS
Cutting Blade Holder
PHP33-CB15N-HS
Cutting Blade
CB09UB-5
Cutting Blade
CB09UB-K60-5
(USA 30°, Japan 60°)
Cutting Blade
CB15U-5
Loupe
PM-CT-001
Fiber-tip pen, pen holder
KF700-BK, KF700-RD, KF700-BL
Fiber-tip pen, pen holder
PHP31-FIBER
Ballpoint Pen, Pen Holder
KB700-BK
Ballpoint Pen, Pen Holder
PHP34-BALL
| Item | Part No. | Description | Package |
|---|---|---|---|
| Cutting blade holder | PHP33-CB09N-HS | For CB09U series blade | 1 set/pack |
| PHP33-CB15N-HS | For CB15U series blade | 1 set/pack | |
| PHP35-CB09-HS | For CB09U series blade | 1 set/pack | |
| PHP35-CB15-HS | For CB15U series blade | 1 set/pack | |
| Cutting blade | CB09UB-5 | 0.9mm dia. 45º angle, Supersteel | 5 blades/pack |
| CB09UB-K60-5 | 0.9mm dia. 30º angle, for thin film (Japan 30º) | 5 blades/pack | |
| CB15U-5 | 1.5mm dia. 45º angle, supersteel | 5 blades/pack | |
| CB15U-K30-5 | Angle 60° Diameter 1.5mm Supersteel Blade for cutting rigid media, 0.25 mm to 0.5 mm thick. And also small detailed characters on marking film (up to 0.25mm). Recommended blade for sandblast rubber resist media cutting and Avery Series of reflective sheeting. Note: CB15-K30 blade can be used with CE6000 Plus by selecting the CB15U under Tools, then performing a test cut looking for 90 degree corners, if needed adjust by using the offset(see user’s manual). The “Other” option can also be chosen as the Tool with the instructions above. NOTE: USA 60° Japan 30° |
5 blades/pack | |
| CB15UA-5 | 1.5mm dia. 45º angle, for high intensity reflective film | 5 blades/pack | |
| CB15UA-K30-5 | 1.5mm dia. 60º angle, for high intensity reflective film | 5 blades/pack | |
| Water-based fiber-tip pen, and pen holder | KF700-BK | Pen (black) | 10 pens/pack |
| KF700-RD | Pen (red) | 10 pens/pack | |
| KF700-BL | Pen (blue) | 10 pens/pack | |
| PHP31-FIBER | Pen holder for KF700 series pen | 1 set/pack | |
| Oil-based ballpoint pen, and pen holder | KB700-BK | Pen (black) | 10 pens/pack |
| PHP34-BALL | Pen holder for KB700 pen | 1 set/pack |
Options
| Item | Part No. | CE6000 PLUS | Description | ||
|---|---|---|---|---|---|
| 40 | 60 | 120 | |||
| Stand | ST0100 | - | X | - | Stand for CE6000-60 |
| Media catch basket | PG0100 | - | X | - | Basket for CE6000-60 |
| PG0101 | - | - | X | Basket for CE6000-120 | AKZ kit for Window Tint | AKZ-KIT | - | - | X | Anti-static string, magnets,and 2 pack of CB09UB-K60 blades |
Packaging
| Model | CE6000-40 PLUS | CE6000-60 PLUS | CE6000-120 PLUS | Stand ST0100 for CE6000-60 | Stand ST0100 for CE6000-120 |
|---|---|---|---|---|---|
| Size (WxHxD) inch | 32.3 x 19.9 x 14.5 | 41.1 x 19.9 x 14.5 | 66.9 x 19.9 x 14.5 |
40.8 x 10.3 x 10.1 |
61.5 x 15 x 8.7 |
| Gross weight | 29.9 lbs |
36.3 lbs |
68.9 lbs |
22.7 lbs |
46.9 lbs |
