CE8000 Series Cutters

Boost Your Production Efficiency with the Graphtec CE8000 Series

Introducing the Graphtec CE8000 Series—a versatile, high-performance cutting solution designed to streamline production and maximize efficiency across a wide range of applications, including signage and vinyl graphics, DTF apparel, print-and-cut, POP displays and packaging, automotive graphics, and more.

Building on the success of its predecessor, the CE7000, the CE8000 features enhanced structural rigidity, delivering improved media feeding stability and cutting performance for greater precision and consistency.

For added convenience and flexibility, optional Wireless LAN connectivity allows seamless integration into a variety of work environments. The CE8000 also incorporates Graphtec's proven Advanced Registration Mark Sensing (ARMS) Technology, carried over from the CE7000, ensuring reliable and accurate cutting of printed graphics.

Take Your Production to the Next Level with the Graphtec CE8000 Series

The ideal combination of versatility, precision, and performance for more efficient workflows and exceptional results.

Graphtec 2 Year Warranty
Graphtec CE8000 Series Cutters

Feature Highlights

Intuitive Control Panel

The CE8000 features a combination of a touch panel and mechanical keys, providing flexible and convenient operation. Blind touch functionality allows operators to keep their eyes on the media while performing feeding operations, improving workflow efficiency and ease of use.

Optional Wireless LAN Connectivity

The optional Wireless LAN Module provides added connectivity flexibility, allowing the CE8000 to be installed in a variety of work environments without being restricted by wired network connections.

Improved Tool Holder Design

The redesigned Tool Holder makes tool changes and blade positioning easier than ever. A sliding stopper allows for quick and convenient forward-and-back adjustments, simplifying setup and operation.

Pressure-Adjustable Push Rollers & Media Set Assist

Adjustable push roller pressure, combined with the newly developed Media Set Assist Function, helps maintain stable media positioning and ensures smooth, accurate feeding while minimizing potential feeding issues.

Email Notifications

Stay informed throughout the production process. The CE8000 can automatically send email notifications to alert users when cutting jobs are completed or when errors occur.

Fan Media Assist

The CE8000 features an integrated fan that automatically activates when its sensors detect media, helping stabilize media positioning and support smooth, reliable feeding.

Graphtec CE8000 Control Panel Touchscreen
Graphtec CE8000 Wireless Diagram
Graphtec CE8000 Cutting Head Holder

Magnetic Tool Compartment

The redesigned tool compartment features a magnetic base for convenient placement and repositioning. Its removable design also provides added flexibility to accommodate different workspace configurations.

Graphtec CE8000 Toolbox

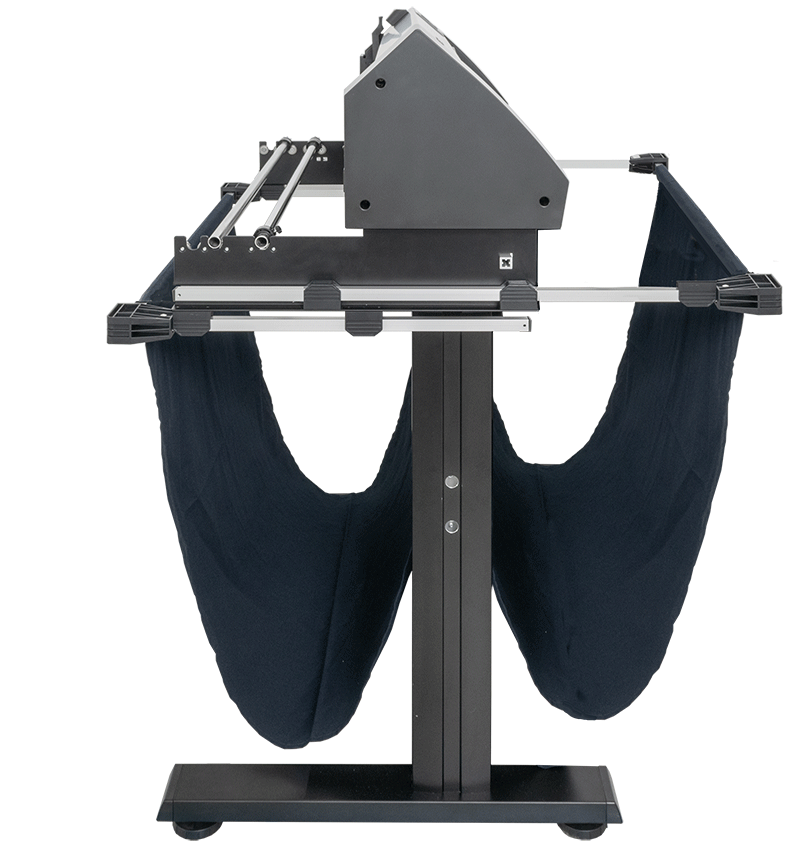

Graphtec CE8000 Media Basket
  • Touch Screen and Mechanical Keys
  • Menu Structure
  • Integrated Firmware Updates

Touch Panel with Mechanical Keys

The CE8000 combines an intuitive touch panel with mechanical keys to provide flexible and convenient operation. Its Blind Touch Operation allows users to navigate controls and perform feeding operations without taking their eyes off the media, ensuring greater ease of use and workflow efficiency.

Improved Menu Structure

The redesigned menu features a more intuitive layout with easy-to-navigate touchscreen icons, making operation simpler, faster, and more efficient.

  • Firmware Updates via Wireless LAN or USB: Check for available firmware updates and download the latest software through an optional Wireless LAN connection or USB.
  • Offline Firmware Updates: Update the firmware directly using a USB flash drive, even when a network connection is unavailable.

Flexible Network Connectivity

The CE8000 offers versatile connectivity options to accommodate different work environments. The optional Wireless LAN module provides greater flexibility in installation and placement, while the standard Ethernet port supports fast, reliable network connectivity.

USB Offline Operation

A dedicated USB port allows users to load and cut jobs directly from a USB flash drive without connecting to a computer. Simply select the desired file or use the barcode function to retrieve cutting data for convenient, standalone operation.

Graphtec ASF Connections

Enhanced Cutting Performance

Improve Tool Holder Design

The redesigned tool holder makes changing tools and adjusting blade positions easier than ever. A sliding stopper allows for quick and convenient forward-and-back adjustments, simplifying setup and operation.

Graphtec Blade Holder Assembly Diagram
Graphtec CE8000 Toolholder

NEW Push Roller Design

The CE8000-130 features an updated push roller design that allows the center roller to be independently engaged or disengaged. This makes media pressure adjustments easier and provides greater control over media handling.

Graphtec CE8000 Pushrollers Diagram

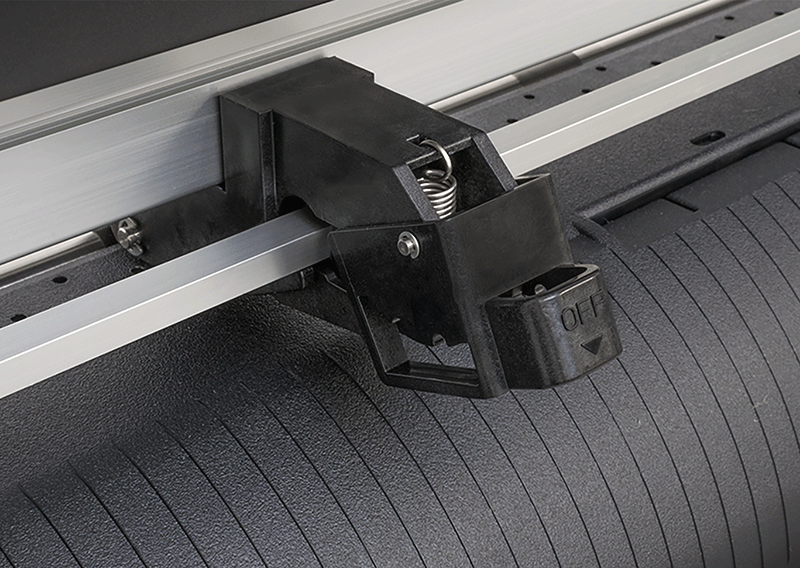

Graphtec CE8000 Pushrollers Lever

NEW Fan Media Assist Function

An integrated fan automatically activates when the sensors detect media, helping stabilize media positioning and support smooth, consistent feeding throughout the cutting process.

Graphtec CE8000 Fan Assist

DataLink Barcode System

Streamline your production workflow and reduce the risk of errors with Graphtec's DataLink Barcode System. By using barcode technology, the system automates job selection and processing, saving valuable time and simplifying the handling of multiple cutting tasks with just the press of a button.

DataLink offers flexible compatibility with a wide range of RIP software and printers, as well as Graphtec's bundled software, including Cutting Master and Graphtec Pro Studio.

The CE8000 Series automatically reads barcodes to identify the corresponding cutting data stored on a connected PC or USB flash drive. It then retrieves the appropriate file, applies the designated cutting conditions, and initiates the cutting process—all automatically for a seamless, efficient workflow.

Graphtec CE8000 Datalink

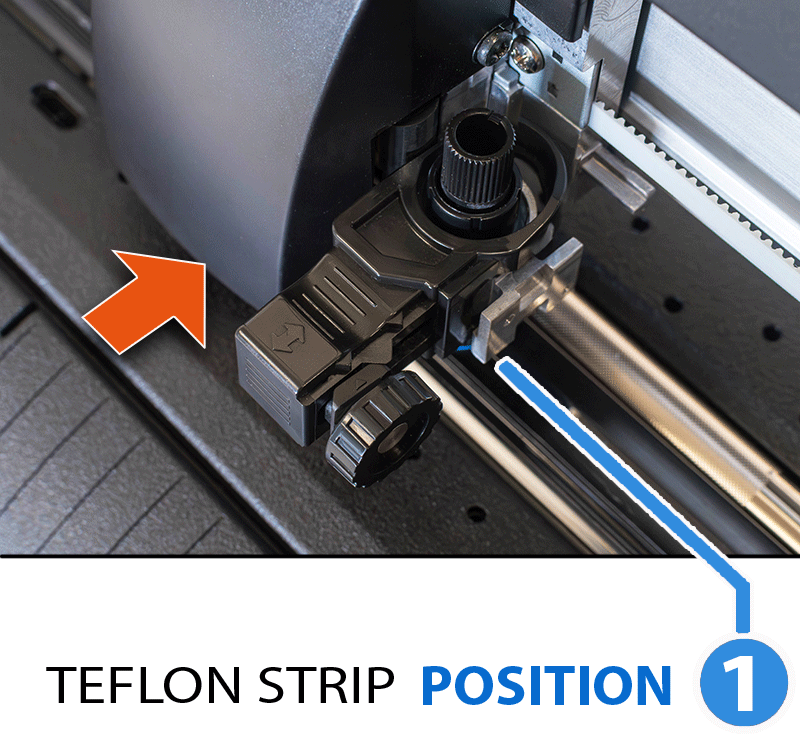

Graphtec CE8000 Tool Position

Advanced Registration Mark Sensing (ARMS)

Graphtec's Advanced Registration Mark Sensing (ARMS) Technology delivers accurate, reliable contour cutting for print-and-cut applications.

The enhanced ARMS system now incorporates the DataLink Barcode System, allowing barcodes to be generated and printed directly as part of the design workflow. This enables automated job identification and cutting data retrieval for a more streamlined, hands-free production process.

With faster registration mark detection, the CE8000 helps reduce processing time and increase overall production efficiency.

Contour and Die Cutting Made Easy

Dedicated tool positions for contour cutting and die cutting help extend the life of your blades and cutting strip. Easily produce decals, labels, and graphics on both sheet and roll media, with clean, precise cuts that allow finished designs to pop out effortlessly.

Powerful, User-Friendly Software

Every new Graphtec cutter includes your choice of Cutting Master 5, a plug-in for Adobe Illustrator and CorelDRAW (Graphics Suite only), or Graphtec Studio 2, Graphtec's intuitive software for designing and cutting graphics.

Both software solutions are compatible with Windows PC and Mac, with convenient connectivity options through USB or Ethernet.

At Graphtec, we make professional cutting simple. From advanced cutting technology to user-friendly software, everything is designed to make your workflow easier and more efficient.

Make your next project easier with Graphtec! Contact your Graphtec Authorized Reseller today.

Graphtec Softwares

Market Applications

Expand your Capabilities with the Highly Versatile CE8000 Series

Graphtec CE8000 Applications

Standard Accessories

Item
Cutting blade holder
Cutting blade
Stand
Roll media tray
Stand for CE8000
Software download
Printed documents
Power cord
Qty
1
1
1
1
1
1
1
1
Description
PHP33-CB09N-HS
CB09UB
Parts kit
Only for CE8000-40
Standard accessory for 60/130
Graphtec Studio 2 & Cutting Master 5 for Mac and PC (Registration Required)
Setup Manual, Cutting Blade Manual, and Safety Manual
The type of cord is different by destination

Optional Accessories

Item
Media baskets
Media baskets
Carrier Sheet table
Loupe
USB cable
Wi-Fi
Part No.
PG0111
PG0112
OPH-A45
PM-CT-001
1
WLAN-001
Description
CE8000-60
CE8000-130
CE8000-40/60
-
9.5 feet long
Wireless LAN
Graphtec Looking for Blade Info
Item
Blade holder
Blade holder
Blade holder
Blade holder
Cuttiung blade
Cuttiung blade
Cuttiung blade
Cuttiung blade
Cuttiung blade
Oil-based Ballpoint Pen and Pen Holder
Oil-based Ballpoint Pen and Pen Holder
Part No.
PHP33-CB09N-HS
PHP33-CB15N-HS
PHP35-CB09-HS
PHP35-CB15-HS
CB09UB-5
CB09UB-K60-5
CB15U-5
CB15UA-K30-5
CT02U
KB700-BK
PHP34-BALL
Description
For CB09U series blade
For CB15U series blade
For CB09U series blade
For CB15U series blade
0.9mm dia. 45º angle, Supersteel
0.9mm dia. 30º angle, for thin film (Japan 60º)
1.5mm dia. 45º angle, supersteel
1.5mm dia. 60º angle, for high intensity reflective film
High durability type
Pen (black)
Pen holder for KB700 pen
Package
1 set/pack
1 set/pack
1 set/pack
1 set/pack
5 blades/pack
5 blades/pack
5 blades/pack
5 blades/pack
1 blade/pack
10 pens/pack
1 set/pack

Specifications

CE8000 Series Products
Model
Configuration
Maximum Cutting Area (W x L)
Cutting Area of Guarenteed Accuracy
Mountable Media Width
Number of Push Rollers
Maximum Cutting Speed
Maximum Acceleration
Maximum Cutting Force
Minimum Character Size
Programmable Resolution
Repeat-ability
Mountable Number of Tools
Blade Type
Pen Type
Media Type
Interface
Buffer Memory
Command Sets
Display
Registration Mark Sensing System
Alignment Accuracy
Power Source
Power Consumption
Operating Environment
Guarenteed Accuracy Environment
External Dimensions (W x D x H)
Weight (Approx.)
Campatible OS (*2)
Included Software (Download)
Warranty
Compatibility Standard Safety
Compatibility Standard EMC

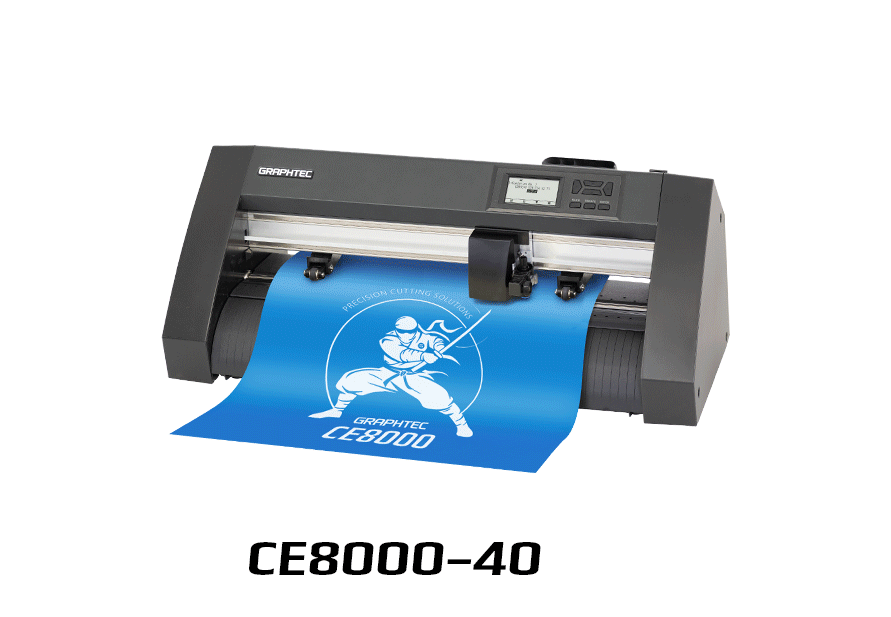

CE8000-40
Grit roller with digital servo drive system
15" x 164"
13" x 79"
2", 19"
2 rollers
24"/s, in all directions
Max. 21.2 m/s2 (2.2G) at 45º direction
4.41 N (450 gf)
Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Max. 0.1 mm in plot up to 2 m (*1)
1 tool
Supersteel
Oil-based ballpoint, water-based fiber-tip pen
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
USB 2.0 (Full Speed) • Ethernet 10 BASE-T/100 BASE-TX • (OPTIONAL) Wireless LAN IEEE 802.11b/g/n*5
2 MB
GP-GL / HP-GL™ (Set by command or auto-detect)
Touch Panel Screen (240-dot x 128-dot), supports 10 languages
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
Maximum 0.3 mm with printed image (when reading specified registration marks)
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
120 VA
10 to 35ºC, 35 to 75% R.H. (non-condensing)
16 to 32ºC, 35 to 70% R.H. (non-condensing)
Approx. 26.65" x 17.76" x 10.5"
24.25 lbs (11kg)
Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
2 year warranty
PSL, UL/cUL, CE mark
VCCI Class A, FCC Class A, CE mark
CE8000-60
Grit roller with digital servo drive system
24" x 164"
23” × 79” / 23”× 16.4’ *1 / *2
2", 30"
2 rollers
36"/s, at 45º direction
Max. 21.2 m/s2 (2.2G) at 45º direction
4.41 N (450 gf)
Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Max. 0.1 mm in plot up to 2 m (*1)
1 tool
Supersteel
Oil-based ballpoint, water-based fiber-tip pen
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
USB 2.0 (Full Speed) • Ethernet 10 BASE-T/100 BASE-TX • (OPTIONAL) Wireless LAN IEEE 802.11b/g/n*5
2 MB
GP-GL / HP-GL™ (Set by command or auto-detect)
Touch Panel Screen (240-dot x 128-dot), supports 10 languages
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
Maximum 0.3 mm with printed image (when reading specified registration marks)
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
120 VA
10 to 35ºC, 35 to 75% R.H. (non-condensing)
16 to 32ºC, 35 to 70% R.H. (non-condensing)
Approx. 35.5" x 23" x 42.4"
46.3 lbs (21kg)
Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
2 year warranty
PSL, UL/cUL, CE mark
VCCI Class A, FCC Class A, CE mark
CE8000-130
Grit roller with digital servo drive system
50" x 164"
50”×79” / 49”×16.4’ *1 / *2
2", 54"
3 rollers
39"/s, at 45º direction
45.60' (13.9 m/s2), at 45º direction
4.41 N (450 gf)
Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Max. 0.1 mm in plot up to 2 m (*1)
1 tool
Supersteel
Oil-based ballpoint, water-based fiber-tip pen
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
USB 2.0 (Full Speed) • Ethernet 10 BASE-T/100 BASE-TX • (OPTIONAL) Wireless LAN IEEE 802.11b/g/n*5
2 MB
GP-GL / HP-GL™ (Set by command or auto-detect)
Touch Panel Screen (240-dot x 128-dot), supports 10 languages
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
Maximum 0.3 mm with printed image (when reading specified registration marks)
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
120 VA
10 to 35ºC, 35 to 75% R.H. (non-condensing)
16 to 32ºC, 35 to 70% R.H. (non-condensing)
Approx. 65" x 32" x 42.3"
106 lbs (40kg)
Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
2 year warranty
PSL, UL/cUL, CE mark
VCCI Class A, FCC Class A, CE mark

*1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.

*2: When using basket.

*3: HP-GL is a registered trademark of the US Hewlett Packard Company.

*4: Roll-medium tray or stand is included.

*5: Ethernet machine available
